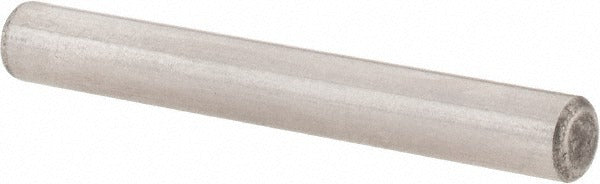

Value Collection 536064PR Dowel Pin 5x40mm Alloy Steel Din 6325

Product Description

The VALUE COLLECTION 536064PR is a standard pull-out dowel pin manufactured to DIN 6325 specifications. This precision-ground pin measures 5 mm in diameter and 40 mm in overall length, with a rounded end type for guided insertion. Made from alloy steel hardened to 58-62 HRC, it delivers dependable shear resistance in tight-tolerance locating and alignment applications. The double-shear breaking strength is rated at 9,270 units, making it well suited for repeatable fixture and tooling setups where positional accuracy and load resistance are required. Machinists, tool and die makers, and mechanical assemblers install these pins in production and maintenance operations.

These pull-out dowel pins are used in precision fixturing, jig and die assemblies, and machine component alignment where exact bore-to-bore registration is critical. The DIN 6325 standard governs ground tolerances and surface finish, ensuring interchangeability with other DIN-compliant components. Typical applications include mold bases, press tooling, and production fixtures in industrial and manufacturing environments. This SKU ships as a single pin and is available in multiples of 100 units to support volume production or maintenance stock requirements.

Key Features

• DIN 6325 standard ground tolerances for precise bore fit and interchangeability
• Alloy steel construction hardened to 58-62 HRC for high wear and shear resistance
• Rounded end type for guided entry into close-tolerance bores
• Double-shear breaking strength of 9,270 for reliable load-bearing in fixture applications
• 5 mm diameter by 40 mm length — a common size for tooling and jig alignment

Compatibility

Designed as a DIN 6325 standard-compliant pull-out dowel pin compatible with precision bores and fixtures specifying a 5 mm ground dowel pin with rounded end type.

Installation Notes

Installation is typically performed by machinists or tool and die technicians using a press or mallet with a suitable driver. Ensure mating bores are reamed to the correct DIN 6325 H7 or equivalent tolerance before pressing the pin into place. Degrease bores and pins prior to installation to ensure accurate seating. Always relieve system load and de-energize any associated machinery before servicing pins in active fixtures or tooling.
