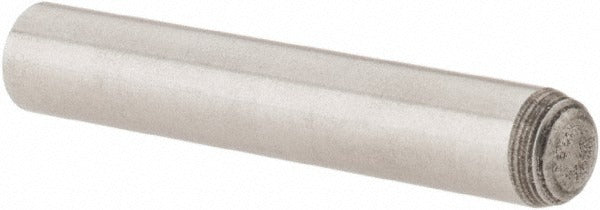

Value Collection 536060PR Precision Dowel Pin 5x30mm Grade 8

Product Description

The VALUE COLLECTION 536060PR is a precision dowel pin designed for accurate locating and alignment in mechanical assemblies. Machined from Grade 8 alloy steel with a bright uncoated finish, this pin meets DIN 6325 and ISO 8734 standards, making it a reliable choice for applications where tight tolerances and consistent sizing are critical. The rounded end type allows for easier insertion into bored holes. At 5 mm in diameter and 30 mm in overall length, it fits a wide range of tooling, fixture, and machine component applications. Machinists, tool and die makers, and mechanical assemblers are the primary installers of this fastener type.

This dowel pin is suited for use in precision fixturing, die sets, mold components, and general machine assembly where repeatable part location is required. The DIN 6325 and ISO 8734 standards ensure dimensional consistency across production runs, which is important when sourcing replacement pins or building assemblies to metric specifications. Sold individually per package with a minimum order quantity of 100 pieces, this pin is appropriate for production-level procurement and shop stock.

Key Features

• Meets DIN 6325 and ISO 8734 standards for precision metric dowel pins
• Grade 8 alloy steel construction for high strength and wear resistance
• Bright uncoated finish for consistent surface condition and dimensional accuracy
• Rounded end type for straightforward insertion during assembly
• 5 mm diameter x 30 mm length for common metric fixturing applications
• Sold in multiples of 100, suitable for production and shop stock replenishment

Compatibility

Designed as a standard metric precision dowel pin per DIN 6325 and ISO 8734 for use in any application requiring a 5 mm diameter by 30 mm length locating pin in alloy steel.

Installation Notes

Precision dowel pins are typically installed by machinists or mechanical assemblers using an arbor press or similar controlled-force tool to avoid damaging the pin or bore. The receiving hole should be reamed to the appropriate tolerance class specified by DIN or ISO standards before pin installation. Never hammer pins in freehand, as this can cause galling or misalignment. Ensure mating components are fully deburred and cleaned before assembly.
