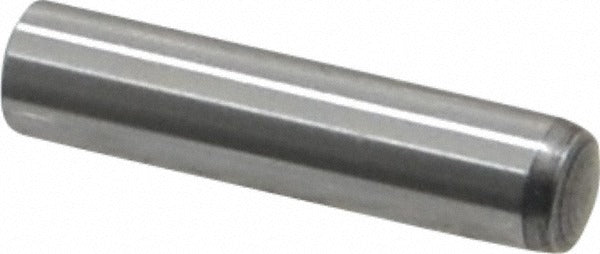

Value Collection 536057PR Precision Dowel Pin 5x22mm Grade 8

Product Description

The VALUE COLLECTION 536057PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright, uncoated finish. It measures 5 mm in diameter and 22 mm in overall length, with rounded ends on both sides. Precision dowel pins of this type are used to maintain accurate alignment between mating components in fixtures, dies, jigs, and assemblies. The bright finish leaves the alloy steel surface clean and dimensionless from coating buildup, which is critical in close-tolerance applications. Machinists, toolmakers, and maintenance technicians are the primary installers of this hardware in production and MRO environments.

This dowel pin conforms to DIN 6325 and ISO 8734 fastener standards, making it suitable for use in machine tool fixtures, stamping dies, injection molds, and precision assembly jigs where repeatable location accuracy is required. The 5 mm diameter and 22 mm length make it a common size in metric mechanical assemblies. This SKU is sold individually but carries a minimum order quantity of 100 pieces per order.

Key Features

• Conforms to DIN 6325 and ISO 8734 precision dowel pin standards
• Grade 8 alloy steel construction for high strength and wear resistance
• Bright, uncoated finish preserves tight dimensional tolerances
• Rounded end type on both ends for ease of insertion into bored holes
• 5 mm diameter x 22 mm length suits common metric assembly applications

Compatibility

Designed as a standard metric precision dowel pin per DIN 6325 and ISO 8734, suitable for use in any fixture, die, mold, or machine assembly that calls for a 5 mm diameter, 22 mm length precision locating pin with rounded ends.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes held to H7 or similar close-tolerance fits. Power down and de-energize any machinery before servicing or replacing locating pins in active fixtures or assemblies. Use a pin press or arbor press rather than a hammer to avoid damaging the bore or distorting the pin. Verify hole diameter and depth before installation to ensure proper engagement and flush or sub-flush seating.
