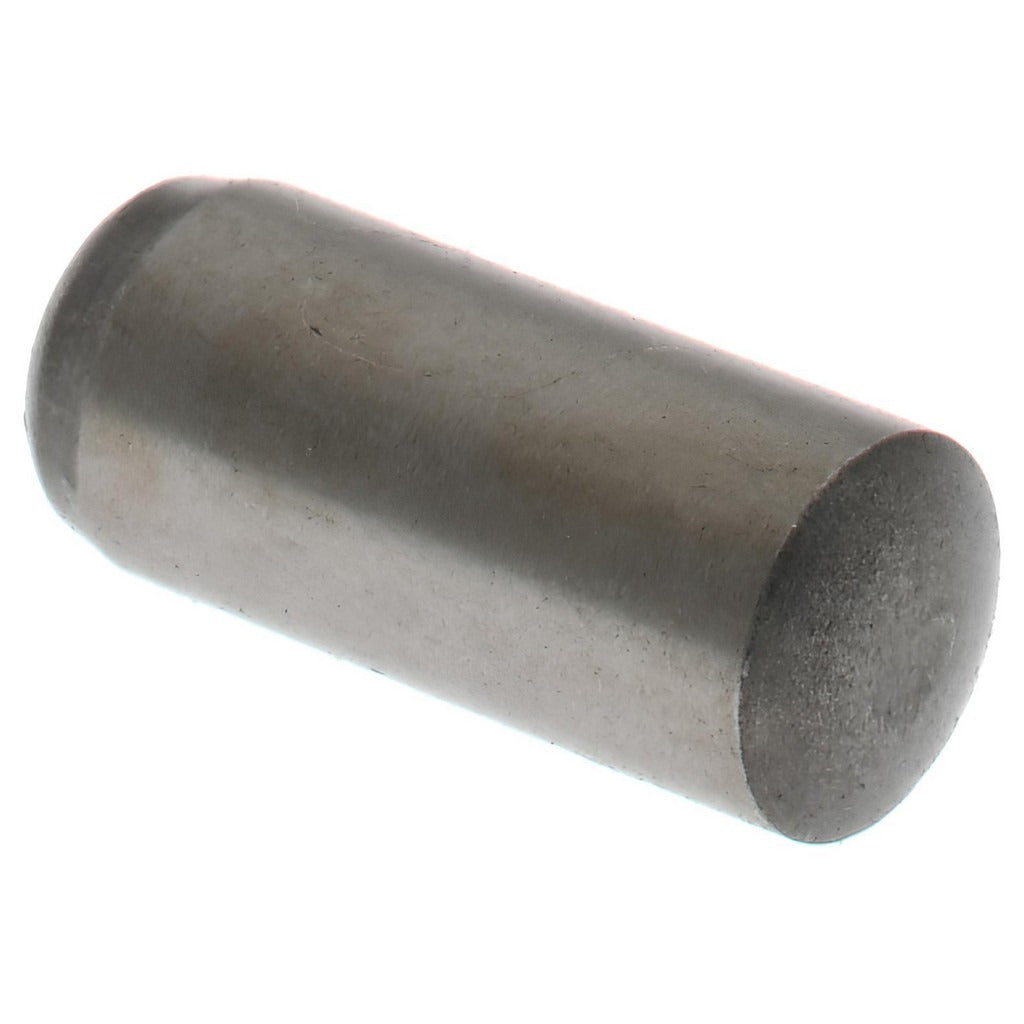

Value Collection 536046PR Precision Dowel Pin 5x10mm Grade 8

Product Description

The VALUE COLLECTION 536046PR is a precision dowel pin designed to locate, align, and retain mating components in mechanical assemblies. Manufactured from Grade 8 alloy steel with a bright, uncoated finish, this pin delivers the strength and dimensional accuracy required in high-tolerance fixture, die, and tooling applications. It measures 5 mm in diameter and 10 mm in overall length, with rounded ends to allow controlled insertion into precision-reamed holes. Machinists, toolmakers, and maintenance technicians rely on this type of pin where repeatable component alignment is critical to part quality and assembly integrity.

This dowel pin is suited for use in jigs, fixtures, dies, molds, and general machine component assemblies where tight positional tolerances must be maintained across repeated assembly and disassembly cycles. It is appropriate for both light production and heavy tooling environments. Rounded-end geometry allows for hand-press or arbor-press installation into standard precision-reamed holes. This pin ships in individual unit packaging with a minimum order quantity of 100 units.

Key Features

• 5 mm diameter by 10 mm overall length for compact, high-precision fitment
• Grade 8 alloy steel construction for superior hardness and shear resistance
• Bright, uncoated finish preserves tight dimensional tolerances
• Rounded ends facilitate controlled insertion into precision-reamed holes
• Conforms to DIN 6325 and ISO 8734 fastener standards for dimensional consistency

Compatibility

Designed as an OEM-style replacement or standard component for mechanical assemblies requiring DIN 6325 or ISO 8734 compliant precision dowel pins with a 5 mm diameter and 10 mm length.

Installation Notes

Precision dowel pins are installed by toolmakers or maintenance machinists using a hand press or arbor press into precision-reamed holes sized to the appropriate ISO fit class. Always ensure the receiving hole is clean, burr-free, and reamed to the correct tolerance before pressing the pin. Do not drive pins with impact tools, as this can damage the hole or deform the pin. Follow applicable workplace and machinery safety procedures and power down or lock out the equipment before performing any component alignment or fixture work.
