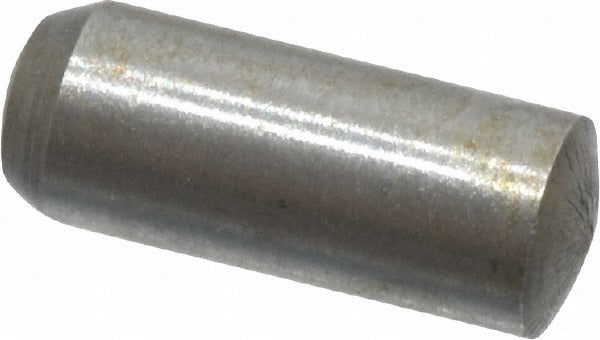

Value Collection 536006PS Precision Dowel Pin 3x8mm Grade 8

Product Description

The VALUE COLLECTION 536006PS is a precision dowel pin designed for accurate alignment and location of mating components in assemblies. Machined from alloy steel to Material Grade 8, this pin meets the DIN 6325 and ISO 8734 standards, making it a recognized choice for tooling, fixture, and machine assembly work. The pin measures 3 mm in diameter and 8 mm in overall length with rounded ends and a bright, uncoated finish. Machinists, tool-and-die makers, and maintenance technicians use these pins wherever tight-tolerance hole-to-hole alignment is required. Sold individually, with a minimum order quantity of 100 pieces per order.

This dowel pin is suited for use in precision mechanical assemblies, jigs, fixtures, dies, and mold components where controlled fit and positional accuracy are critical. The DIN 6325 and ISO 8734 standards define close dimensional tolerances that ensure consistent interference or transition fits in reamed holes. Applications span general industrial manufacturing, metalworking shops, and equipment maintenance environments. The rounded end profile aids entry during press or slip fitting. This pin is installed by machinists and maintenance mechanics working on component alignment, assembly locating, and fixture construction.

Key Features

• Meets DIN 6325 and ISO 8734 standards for close-tolerance precision fit applications
• Alloy steel construction at Material Grade 8 for strength and wear resistance
• 3 mm diameter by 8 mm overall length for compact, precise alignment tasks
• Rounded end type for easier insertion into reamed holes
• Bright uncoated finish maintains dimensional integrity without coating buildup

Compatibility

Designed as an OEM-style and aftermarket-compatible precision locating pin for use in any application requiring a DIN 6325 or ISO 8734 compliant 3 mm diameter dowel pin in a reamed hole assembly.

Installation Notes

Precision dowel pins are installed by machinists or maintenance mechanics using an arbor press or soft-faced hammer into reamed holes sized for the intended fit class. Ensure the mating holes are clean, deburred, and dimensionally verified before installation. Never force a pin with an oversized hammer blow that could damage the hole or distort the pin. Follow your facility safety procedures and shut down any powered equipment before performing alignment or assembly work involving these pins.
