Value Collection 535150PR M10x1.5 Button Socket Cap Screw

Product Description

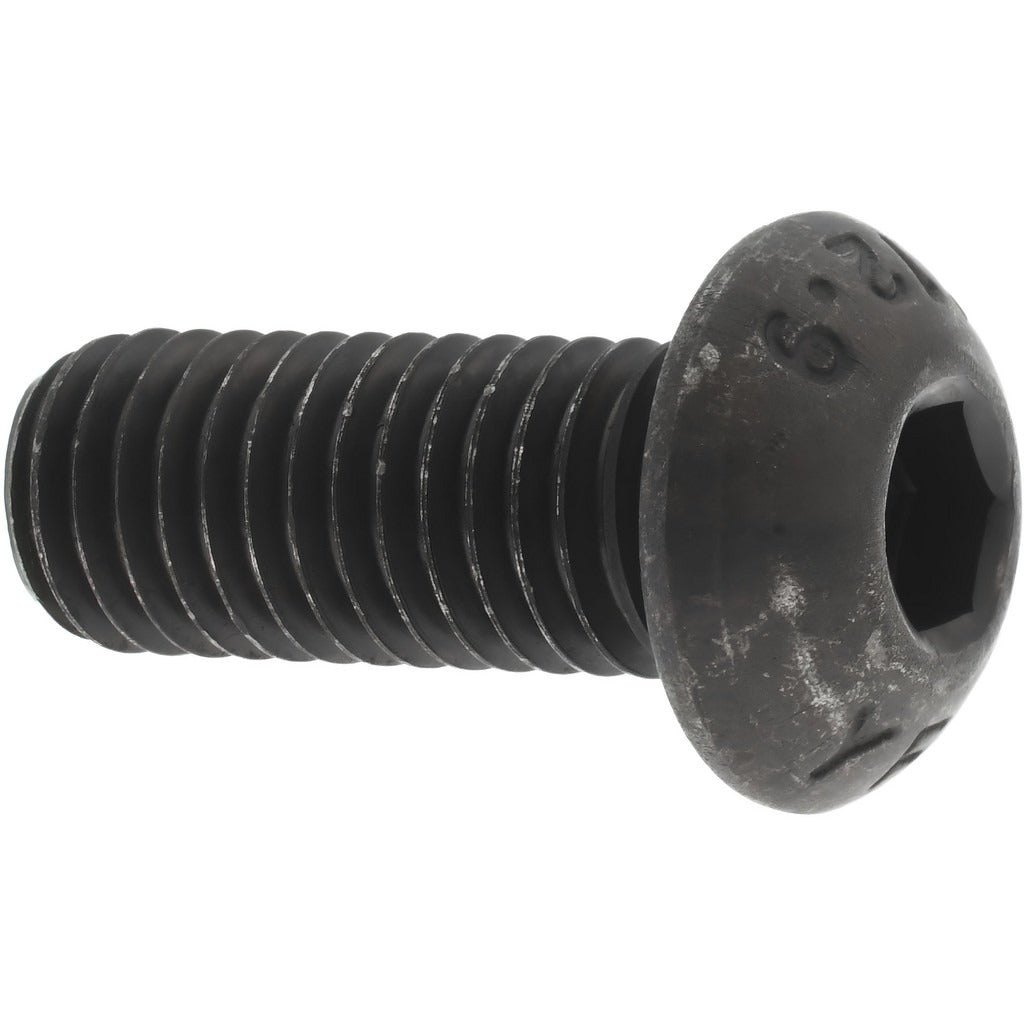

The VALUE COLLECTION 535150PR is a button socket cap screw manufactured from alloy steel with a black oxide finish. It features an M10x1.5 thread and a 25 mm length under the head, with a 6 mm hex socket drive. Built to material grade 12.9, this fastener delivers high tensile strength suitable for demanding mechanical assemblies. The black oxide coating provides mild corrosion resistance and a low-reflectance appearance. It conforms to ANSI/ASME B18.3.4M and ISO 7380 standards. Hardness is rated at 38-43 HRC. Installation is handled by maintenance technicians, machine builders, and mechanical contractors working on equipment assemblies.

This screw is used in applications where a low-profile button head is required and clearance above the joint surface is limited. Common install scenarios include machinery frames, fixtures, enclosures, and structural assemblies that require metric fasteners. The fully threaded design and 4G/6G thread fit class provide consistent engagement in standard metric tapped holes. Right-hand thread direction is standard. This screw suits both light industrial and heavy mechanical applications where grade 12.9 alloy steel strength is specified.

Key Features

• M10x1.5 metric thread with right-hand direction and 4G/6G thread fit class
• Material grade 12.9 alloy steel for high tensile strength
• Black oxide coating for mild corrosion resistance and low-reflectance finish
• 6 mm hex socket drive for torque application with standard Allen keys or hex bits
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards
• Hardness rated at 38-43 HRC

Compatibility

Designed as an OEM-style metric replacement fastener for assemblies requiring M10x1.5 button socket cap screws per ISO 7380 and ANSI/ASME B18.3.4M specifications.

Installation Notes

Installation is performed by qualified mechanical technicians using a 6 mm hex key or socket bit. De-energize and lock out all equipment before fastener replacement or installation per applicable OSHA lockout/tagout procedures. Verify tapped hole thread class and depth before installation to ensure proper engagement. Do not substitute this grade 12.9 fastener in applications specifying a lower material grade without engineering review.
