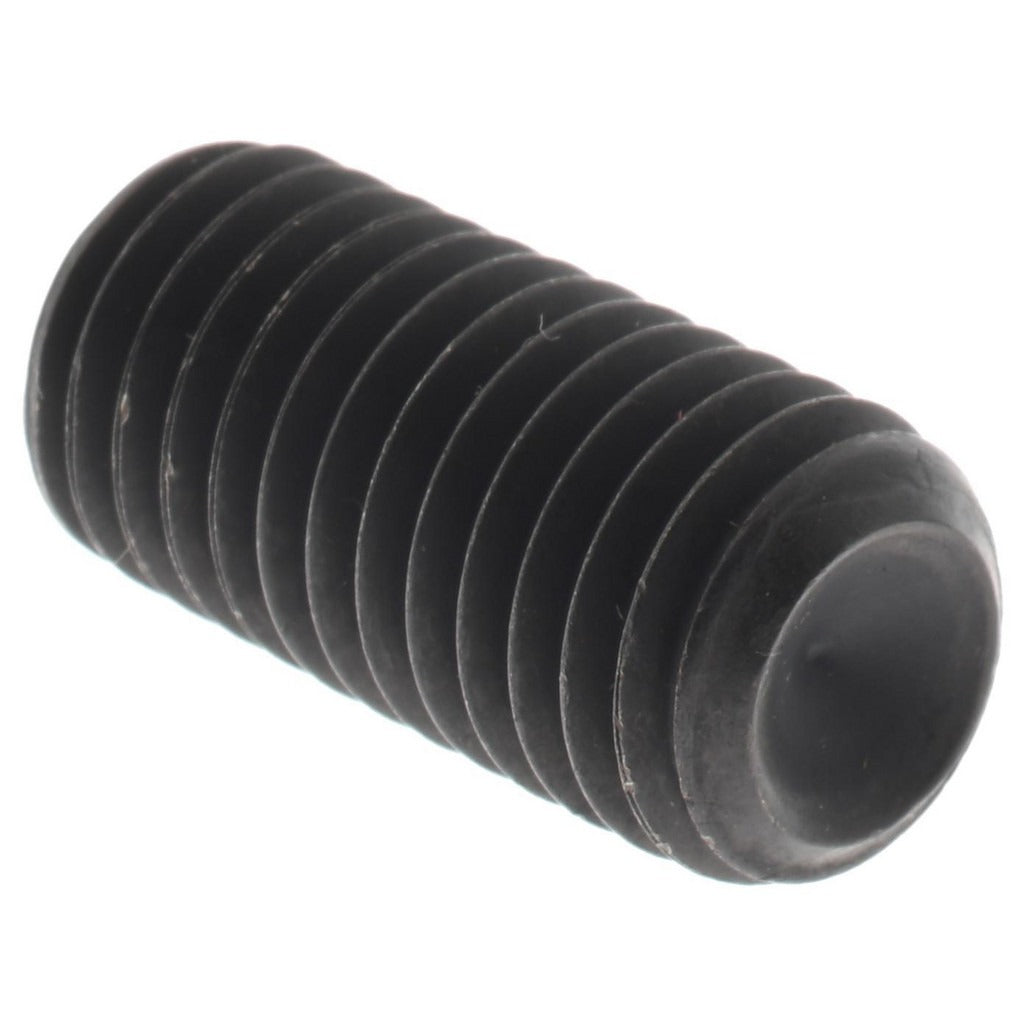

Value Collection 533194PS M12 X 1.75 X 25mm Cup Point Set Screw

Product Description

The VALUE COLLECTION 533194PS is an M12 x 1.75 x 25 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). This fully threaded fastener uses a hex socket drive and a hardened cup point to bite into a shaft or mating surface, locking a collar, gear, pulley, or hub in position without a protruding head. At Grade 14.9, the screw delivers high proof load and tensile strength suited to high-torque clamping applications. It conforms to DIN 916, the metric standard for hexagon socket set screws with cup point geometry. The 6 mm hex key drive allows controlled installation torque in confined spaces.

This set screw is used in mechanical assemblies where a headless fastener is required to secure a rotating or sliding component to a shaft. Typical applications include machine tools, conveyor systems, motor couplings, and industrial power transmission equipment. The metric thread and DIN 916 standard make it appropriate for equipment manufactured to European or international metric specifications. It is sold in a minimum order quantity of 100 pieces, making it suitable for maintenance shops, production lines, and MRO stocking programs that require consistent fastener supply.

Key Features

• Cup point geometry grips shaft surface firmly to resist axial and rotational movement
• Grade 14.9 (45H) alloy steel provides high proof load and tensile strength
• DIN 916 standard ensures dimensional conformance for metric assemblies
• Hex socket drive (6 mm key size) allows installation in restricted access areas
• Fully threaded headless design sits flush or below the surface of the mating component
• Metric thread M12 x 1.75 for compatibility with standard metric tapped holes

Compatibility

Designed for use in metric-threaded M12 x 1.75 tapped holes in mechanical assemblies conforming to DIN or equivalent international fastener standards.

Installation Notes

Installation should be performed by a qualified machinist or mechanical technician using a calibrated 6 mm hex key or hex bit driver. Ensure the mating tapped hole is clean and free of debris before driving the screw. Do not exceed the torque rating of the tapped hole material, particularly in softer substrates such as aluminum. Secure all related machine guards and de-energize rotating equipment completely before servicing any shaft-mounted component.
