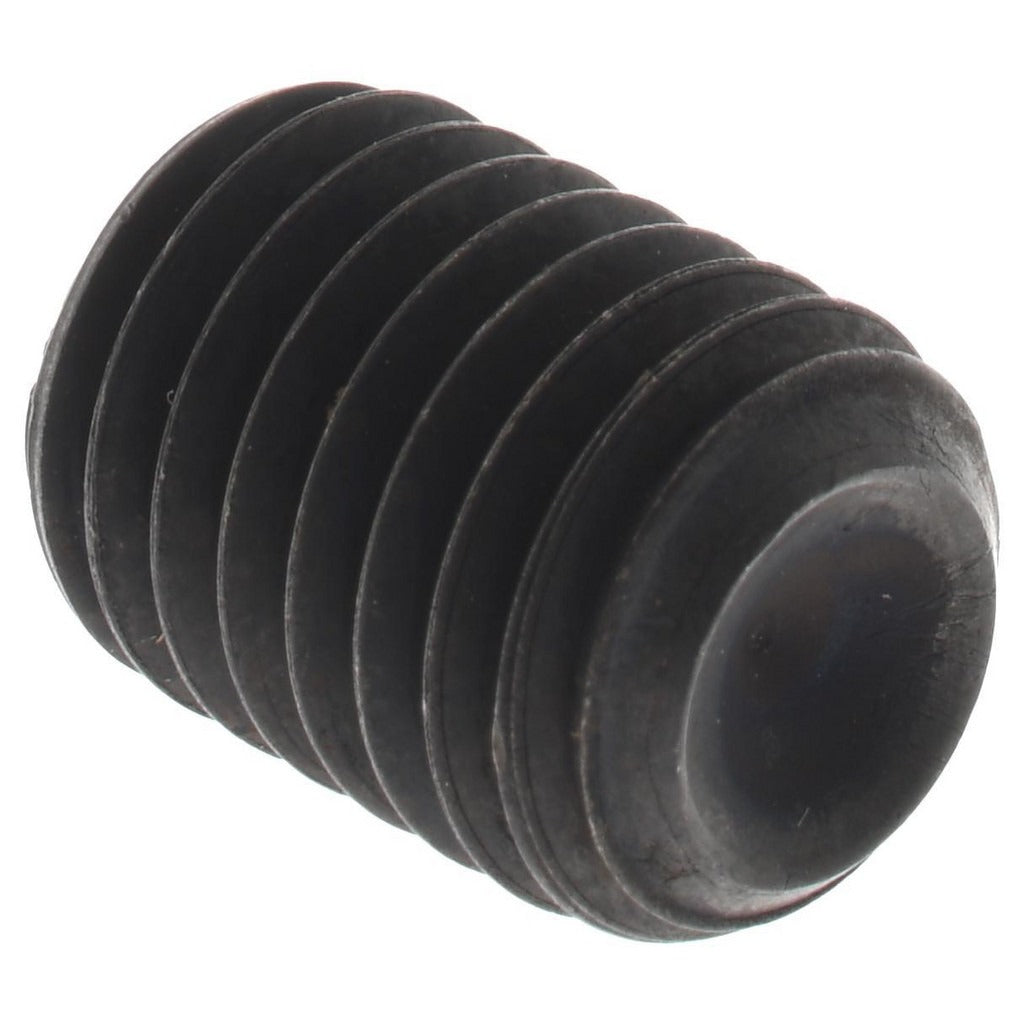

Value Collection 533190PR M12 Set Screw Cup Point Din 916

Product Description

The VALUE COLLECTION 533190PR is a metric hex-socket set screw engineered for secure mechanical fastening in industrial and manufacturing applications. It features an M12 x 1.75 thread with an overall length of 16 mm, a cup-point tip for firm gripping into shaft material, and a 6 mm hex key drive. Manufactured from alloy steel to Grade 14.9 (45H), this fastener delivers high tensile and torsional strength suitable for demanding clamping and locking tasks. It conforms to DIN 916, the internationally recognized standard for cup-point socket set screws.

This set screw is used wherever a shaft, collar, gear, or hub must be locked to a rotating or stationary component without a protruding head. Typical installations include motor shafts, pulley hubs, shaft collars, and mechanical assemblies in industrial equipment. The cup point bites into the shaft surface to resist axial and rotational movement under load. This product is sold individually with a minimum order quantity of 100 pieces, making it suited for production runs, MRO inventory, or shop stock replenishment by machinists and industrial maintenance technicians.

Key Features

• M12 x 1.75 metric thread, 16 mm overall length
• Cup point tip for positive shaft engagement and slip resistance
• Grade 14.9 (45H) alloy steel construction for high-strength clamping applications
• Hex socket drive accepts a 6 mm hex key for installation in confined spaces
• Conforms to DIN 916 fastener standard
• Minimum order quantity of 100 pieces per order

Compatibility

Designed as a DIN 916-compliant metric set screw suitable for use in shaft collars, hubs, gears, and other mechanical assemblies requiring an M12 x 1.75 cup-point fastener.

Installation Notes

Installation is performed by machinists or industrial maintenance technicians using a 6 mm hex key or T-handle driver. Power down and de-energize all associated equipment before installing or removing set screws on rotating components. Ensure mating threads are clean and free of debris before engagement. Do not exceed the torque rating specified by the equipment manufacturer for this thread size and grade.
