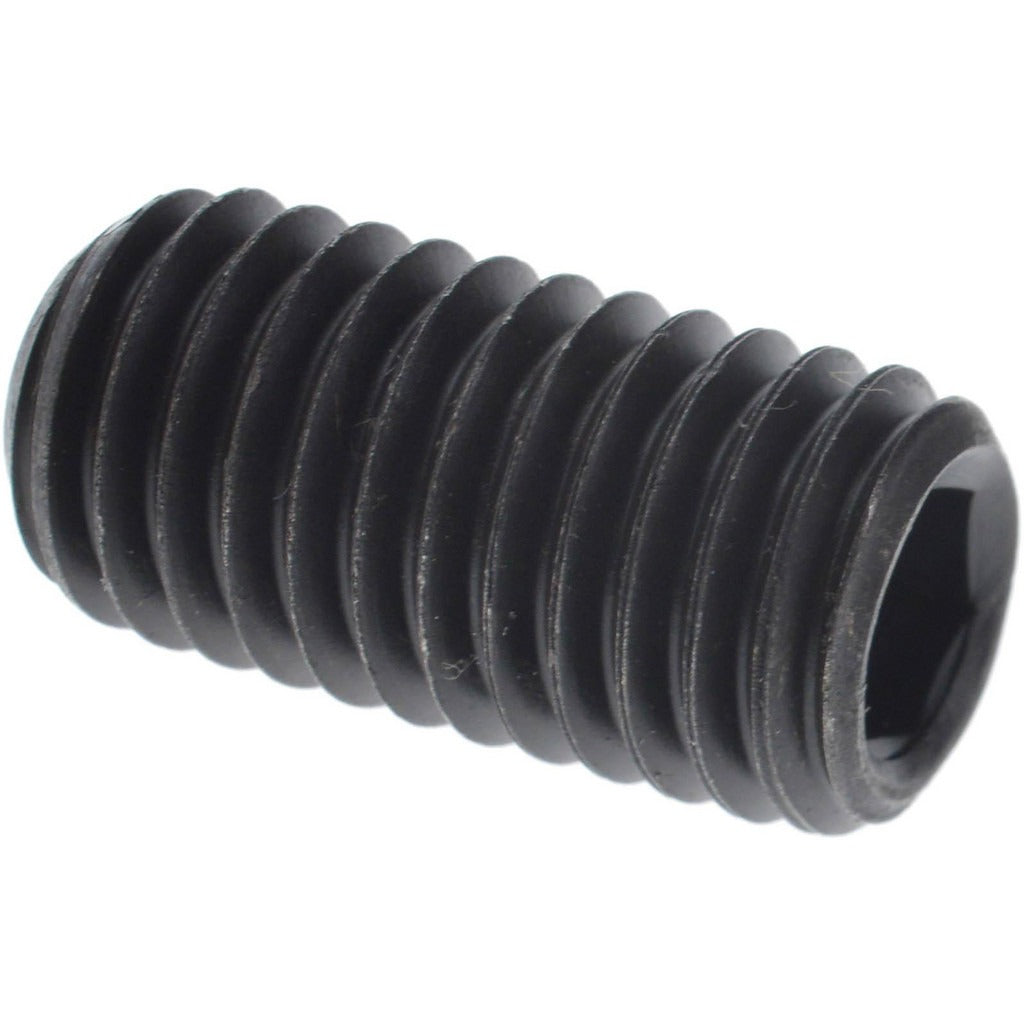

Value Collection 533148P M10 Set Screw Cup Point Din 916

Product Description

The VALUE COLLECTION 533148P is an M10 x 1.50 x 20 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H), making it one of the highest-strength metric set screw grades available. The cup point tip bites into the mating shaft to resist rotation and axial movement without requiring a through-hole. Drive is a 5 mm hex socket. This fastener conforms to DIN 916, the standard governing metric hexagon socket set screws with cup point. It is commonly installed by millwrights, maintenance technicians, and mechanical assemblers in industrial, OEM, and MRO applications.

This set screw is suited for shaft-collar, shaft-hub, and bearing-retention applications where a secure, vibration-resistant connection is required. The cup point geometry works on both hardened and unhardened shafts, and the alloy steel Grade 14.9 construction delivers high proof load and tensile strength relative to standard-grade metric fasteners. Typical installations include machine tool components, power transmission assemblies, conveyor systems, and general mechanical subassemblies that see moderate to high clamping loads. This SKU is sold individually with a minimum order quantity of 100 pieces.

Key Features

• Grade 14.9 (45H) alloy steel construction for high clamping force and proof load
• Cup point tip provides positive shaft engagement and resists axial and rotational movement
• M10 x 1.50 metric thread with 20 mm overall length
• 5 mm hex socket drive compatible with standard hex keys and T-handle drivers
• Conforms to DIN 916 fastener standard for metric cup point set screws
• Minimum order quantity of 100 pieces for consistent supply in production or MRO environments

Compatibility

Designed as a DIN 916-compliant metric set screw for use in any M10 x 1.50 threaded bore requiring a cup point fastener. Verify thread engagement depth and shaft material compatibility before installation.

Installation Notes

Installation requires a calibrated 5 mm hex key or driver. Clean and inspect the threaded bore before installation to ensure full thread engagement across the 20 mm screw length. Apply appropriate thread-locking compound if vibration loosening is a concern in the application. Follow the equipment manufacturer torque specifications for Grade 14.9 set screws, and de-energize or lock out any rotating equipment before servicing shaft-mounted components.
