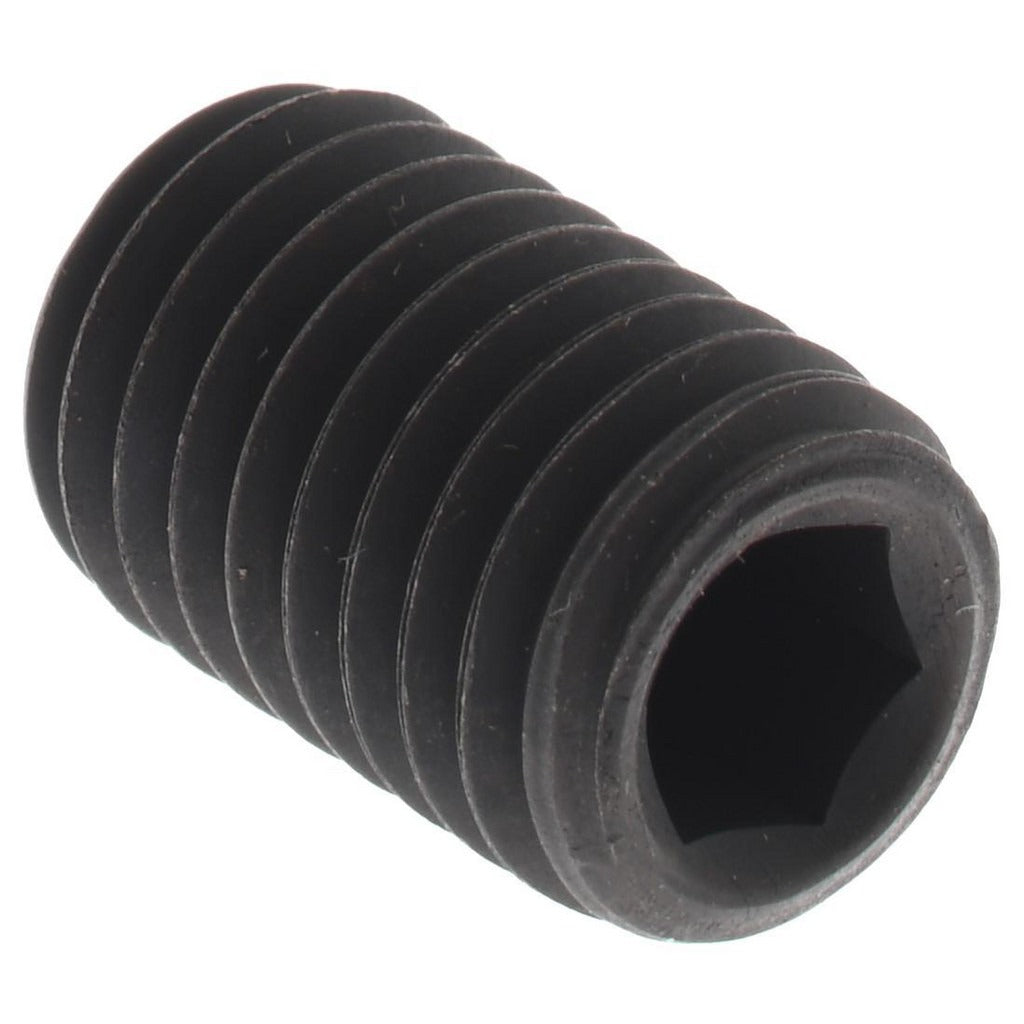

Value Collection 533146PR Set Screw M10x1.5 16mm Cup Point

Product Description

The VALUE COLLECTION 533146PR is an M10 x 1.50 x 16 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws are headless fasteners used to secure a component — such as a pulley, collar, or gear — onto a shaft by applying direct point pressure. The cup point tip bites into the shaft surface to resist rotational and axial movement. This screw is driven with a 5 mm hex key and conforms to DIN 916, the metric standard for socket set screws with cup points. It is sized by overall length at 16 mm with a 1.50 mm thread pitch.

This fastener is suited for general industrial, mechanical, and maintenance applications where a flush or recessed fastening solution is required. Cup point set screws at this size and grade are commonly found in power transmission assemblies, machine tool setups, and equipment manufacturing environments. They are installed by maintenance technicians, machinists, and mechanical assemblers across light and heavy industrial settings.

Key Features

• M10 x 1.50 metric thread with 16 mm overall length for precise fitment
• Cup point geometry bites into shaft material to resist slipping under load
• Alloy steel construction at Grade 14.9 (45H) provides high tensile and proof strength
• DIN 916 compliant for interchangeability with other metric cup point set screws
• 5 mm hex key drive for installation in confined or recessed locations

Compatibility

Designed as an OEM-style replacement or standard metric fastener for applications requiring a DIN 916 cup point set screw in M10 x 1.50 thread size.

Installation Notes

Set screws of this type are typically installed by machinists or mechanical technicians using a calibrated 5 mm hex key or hex bit driver. De-energize and lock out all equipment before servicing any shaft or rotating assembly. Thread engagement should be verified to avoid cross-threading, and the mating shaft surface should be clean and free of burrs before tightening. Do not apply thread locker compounds unless specified by the equipment manufacturer.
