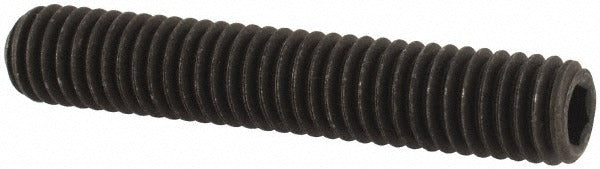

Value Collection 533086PR M6 Set Screw Cup Point Alloy Steel

Product Description

The VALUE COLLECTION 533086PR is an M6 x 1.00 x 35 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws of this type are headless fasteners used to secure a component — such as a gear, pulley, or collar — against a shaft by applying concentrated clamping force through the cup point. The hex drive (3 mm hex key) allows installation in recessed or tight clearance applications. This screw meets DIN 916 standards and is suited for industrial, mechanical, and maintenance applications where a reliable, flush-mount fastener is required.

This set screw is appropriate for general mechanical assembly, power transmission components, and precision machinery applications. It is commonly installed in manufacturing, maintenance, and MRO environments where metric fasteners conforming to DIN 916 are specified. The cup point geometry bites into the mating shaft surface to resist axial and rotational movement under load. Installation is performed with a 3 mm hex key. This item is sold in minimum order quantities of 100 pieces; package quantity is 1.

Key Features

• Cup point geometry provides positive grip on shaft surfaces to resist rotation and axial shifting
• Grade 14.9 (45H) alloy steel construction delivers high tensile and torsional strength
• Hex socket drive (3 mm) allows use in confined spaces without a protruding head
• DIN 916 standard ensures dimensional consistency for metric mechanical assemblies
• M6 x 1.00 metric thread with 35 mm overall length for deep engagement in thick hubs or collars

Compatibility

Designed as a DIN 916 metric set screw for use in any M6-threaded bore requiring a cup point, headless configuration in industrial or mechanical assemblies.

Installation Notes

Installation is performed by a machinist, maintenance technician, or mechanical assembler using a 3 mm hex key or Allen driver. Ensure the mating bore is clean and correctly tapped to M6 x 1.00 before installation. De-energize and lock out any machinery before installing or removing set screws on rotating components. Do not exceed the rated torque range for Grade 14.9 fasteners as specified in applicable engineering standards.
