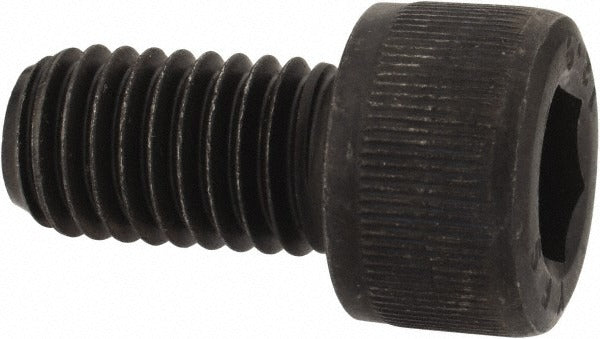

Value Collection 532147PR Hex Socket Cap Screw M10 X 1.50

Product Description

The VALUE COLLECTION 532147PR is an M10 x 1.50 hex socket cap screw with an 18 mm length under head, manufactured from alloy steel with a black oxide finish. Rated to Material Grade 12.9, this fastener delivers high tensile strength suitable for demanding mechanical and structural applications. The internal hex drive accepts a standard hex key for installation in recessed or close-clearance locations. It meets DIN 912 and ISO 898-1 standards, making it a recognized choice for precision assemblies across industrial, maintenance, and fabrication environments. Licensed tradespeople and assembly technicians working to print specifications will find this fastener dimensionally consistent and grade-verified.

This screw is suited for general-purpose mechanical assembly, machine building, tool and die work, and equipment repair where a Grade 12.9 alloy steel fastener is specified. The fully threaded body engages the full mating thread depth, making it appropriate for tapped blind holes and through-hole applications. Typical users include millwrights, machinists, maintenance technicians, and industrial assemblers working to DIN or ISO fastener call-outs.

Key Features

• M10 x 1.50 thread with 18 mm length under head, fully threaded
• Material Grade 12.9 alloy steel for high tensile and proof load strength
• Black oxide coating provides mild corrosion resistance and reduces light reflection
• Internal hex (socket) drive for use in recessed and torque-sensitive applications
• Conforms to DIN 912 and ISO 898-1 fastener standards
• Sold in minimum order quantity of 100 pieces per package

Compatibility

Designed as a standard DIN 912 and ISO 898-1 compliant M10 x 1.50 socket cap screw compatible with any tapped or through-hole application calling out that thread specification and grade.

Installation Notes

Installation is performed with a correctly sized hex key or socket driver rated for Grade 12.9 fasteners. Follow the torque specifications published in the engineering drawing or assembly specification for the mating material and application. Always inspect the tapped hole for debris and correct thread condition before installation. Do not exceed the rated clamp load or substitute a lower-grade fastener in a Grade 12.9-specified joint.
