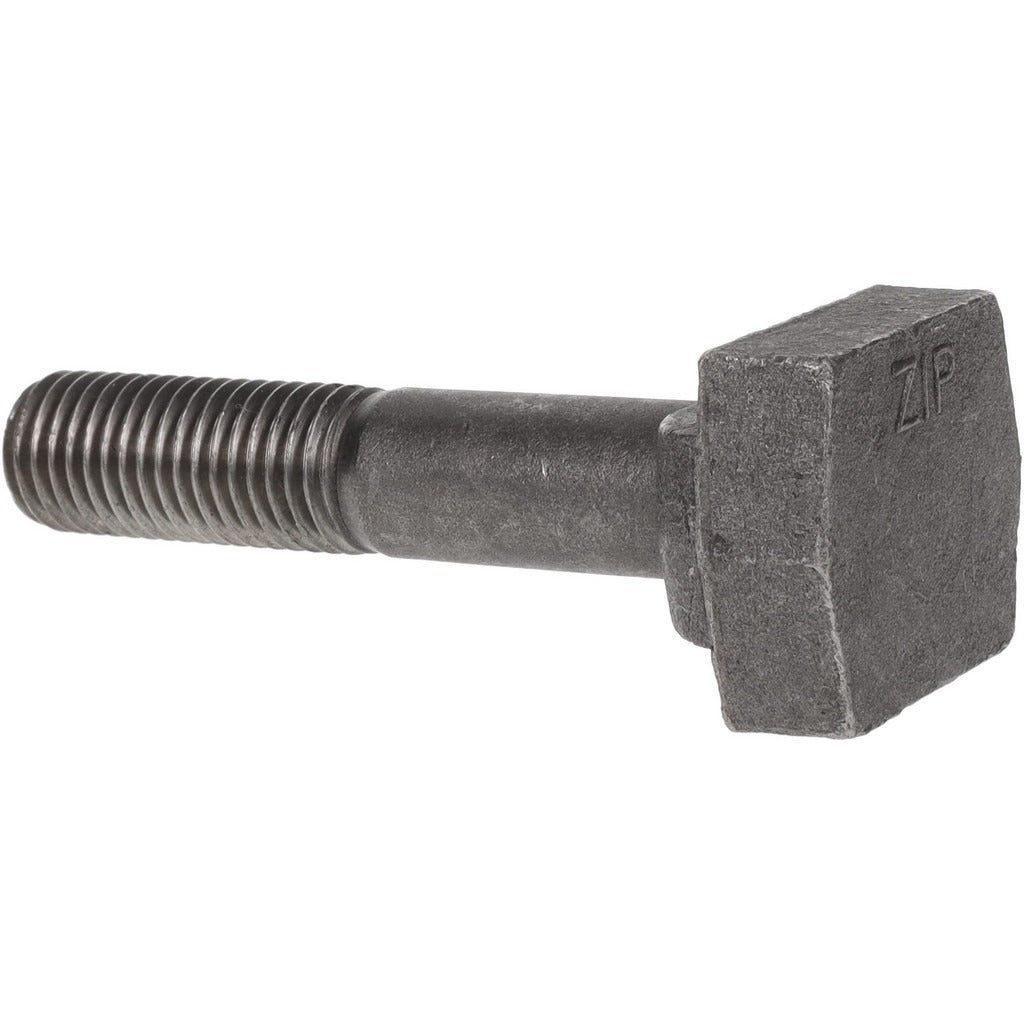

Value Collection 50020 Steel T-slot Bolt 3/4-10 Uncoated

Product Description

The VALUE COLLECTION 50020 is a steel T-slot bolt designed for securing workpieces and fixtures to T-slotted tables, jigs, and machine tool setups. It features a 3/4-10 UNC thread with a 2-inch thread length and fits a 7/8-inch slot width. The head measures 1-1/2 inches wide and 9/16 inches tall, with a 4-inch length under the head. Material is Grade C-1045 steel with an uncoated finish, providing solid mechanical strength for general industrial clamping applications. Installed by machinists, toolroom technicians, and maintenance professionals working with milling machines, surface grinders, and similar equipment.

This T-slot bolt is suited for use in machine shop and industrial manufacturing environments where workpieces or clamping fixtures must be secured to T-slotted cast iron or steel tables. The 7/8-inch slot width targets standard T-slot table configurations common in metalworking equipment. The Class 3 thread fit provides a close tolerance engagement appropriate for load-bearing clamping setups. Typical installations involve pairing this bolt with a T-nut, strap clamp, and step block set to secure stock material during machining operations.

Key Features

• 3/4-10 UNC thread with Class 3 fit for precise, load-bearing engagement
• 7/8-inch slot width fits standard T-slotted machine table configurations
• Grade C-1045 steel construction for reliable mechanical strength
• 4-inch length under head accommodates varying stack heights in clamping setups
• Uncoated finish for straightforward inspection and dimensional verification
• 1-1/2-inch head width provides broad bearing surface within the slot

Compatibility

Designed as a direct-fit T-slot bolt for machine tables, jigs, and fixtures with a 7/8-inch T-slot width accepting a 3/4-10 UNC fastener.

Installation Notes

Installation is typically performed by a machinist or maintenance technician. Always de-energize and lock out the machine before adjusting or repositioning clamping hardware on any machine tool table. Use a calibrated torque wrench appropriate for 3/4-inch fasteners and follow the fixture or machine manufacturer's recommended clamping torque and setup procedures. Do not exceed the rated load capacity of the T-slot or clamping components in use.
