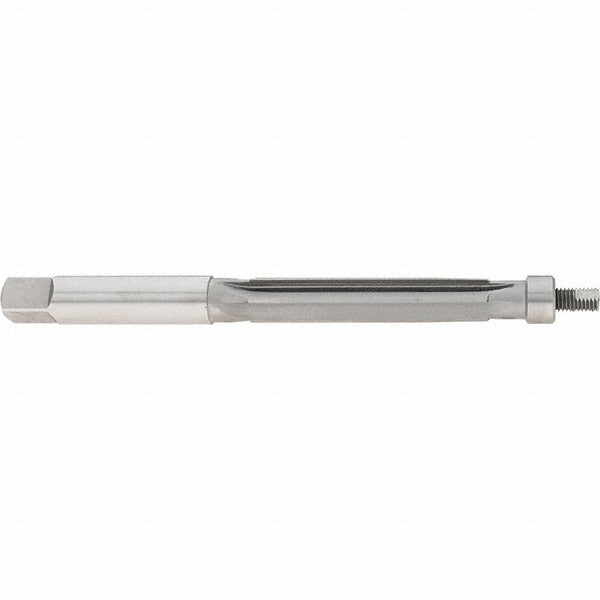

Value Collection 5-013-065 Hand Expansion Reamer 5/8 in

Product Description

The VALUE COLLECTION 5-013-065 is a hand expansion reamer designed for precise hole finishing and minor diameter adjustment in metalworking and mechanical assembly applications. Built from high speed steel with a bright polished coating, it features a straight flute geometry and straight shank for consistent material removal and easy chuck mounting. The reamer measures 5/8 inch in diameter with a maximum expansion of 0.006 inches, a 3 inch flute length, and a 7 inch overall length. Six flutes provide smooth cutting action with a right-hand cut orientation. Machinists, pipefitters, and maintenance technicians use this tool to bring drilled or bored holes to a precise final diameter by hand.

This hand expansion reamer is suited for light-duty reaming tasks where incremental diameter adjustment is required. The expansion feature allows fine-tuning within the 0.500 to 0.699 inch diameter range, making it useful for fitting pins, bearings, and bushings to close tolerances. It is commonly used in job shops, maintenance facilities, and field service environments where a powered machine reamer is not practical or available. The straight shank accepts standard drill press chucks or tap wrenches for manual operation.

Key Features

• 5/8 inch nominal diameter with up to 0.006 inches of hand-adjustable expansion
• High speed steel construction for durability across a wide range of metals
• Bright polished coating reduces friction and aids chip evacuation
• Six straight flutes with right-hand cut for smooth, consistent material removal
• 3 inch flute length and 7 inch overall length suit standard depth applications
• Straight shank compatible with tap wrenches and standard drill press chucks

Compatibility

Designed for hand reaming operations on holes in the 0.500 to 0.699 inch diameter range. Accepts standard straight-shank chuck and tap wrench holders used in general metalworking and maintenance applications.

Installation Notes

Hand expansion reamers are typically used by machinists and mechanical tradespeople. Secure the workpiece before reaming and apply a suitable cutting fluid to extend tool life and improve finish quality. Expand the reamer only within the rated 0.006 inch maximum to avoid damaging the tool or splitting the reamer body. Never use a pipe wrench or improvised handle on the shank — use a proper tap wrench or chuck for controlled torque.
