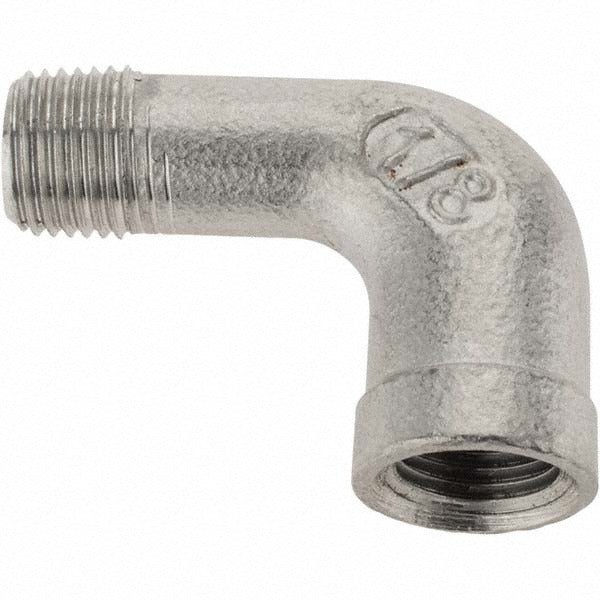

Value Collection 4SLB901/8 90 Deg Street Elbow 1/8 in Ss

Product Description

The VALUE COLLECTION 4SLB901/8 is a 90-degree street elbow fitting designed for threaded pipe systems requiring a compact directional change. Manufactured from 304 stainless steel to Schedule 40 standards, this fitting connects female NPT on one end to male NPT on the other, allowing it to thread directly into another fitting without a nipple between them. It carries a 150 psi pressure rating, making it suitable for moderate-pressure fluid and gas piping applications. Plumbers, pipefitters, and mechanical contractors install this type of fitting when routing pipe runs through tight spaces or making close-quarter 90-degree turns.

This street elbow is suited for residential and light commercial plumbing, HVAC condensate and refrigerant piping support lines, compressed air distribution, and general industrial fluid systems where stainless steel corrosion resistance is required. The 1/8 inch fitting size is common in instrument lines, small-bore piping, and pilot or sensing line connections. It is sold individually with a minimum order quantity of 2 units.

Key Features

• 90-degree street elbow configuration eliminates the need for a separate nipple between fittings
• 304 stainless steel construction resists corrosion in wet, chemical, and outdoor environments
• FNPT x MNPT threaded ends for standard NPT pipe thread engagement
• 150 psi pressure rating suitable for moderate-pressure service lines
• Schedule 40 wall thickness for standard pipe system compatibility
• 1/8 inch fitting size for small-bore and instrument piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 NPT threaded pipe systems requiring a 1/8 inch 90-degree street elbow connection.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC or IFGC code requirements for the service type. Shut off and depressurize the pipe system fully before disassembling any threaded connections. Apply an appropriate thread sealant or PTFE tape to the male NPT threads before assembly. Do not overtighten stainless steel NPT fittings, as galling can occur on stainless threads.
