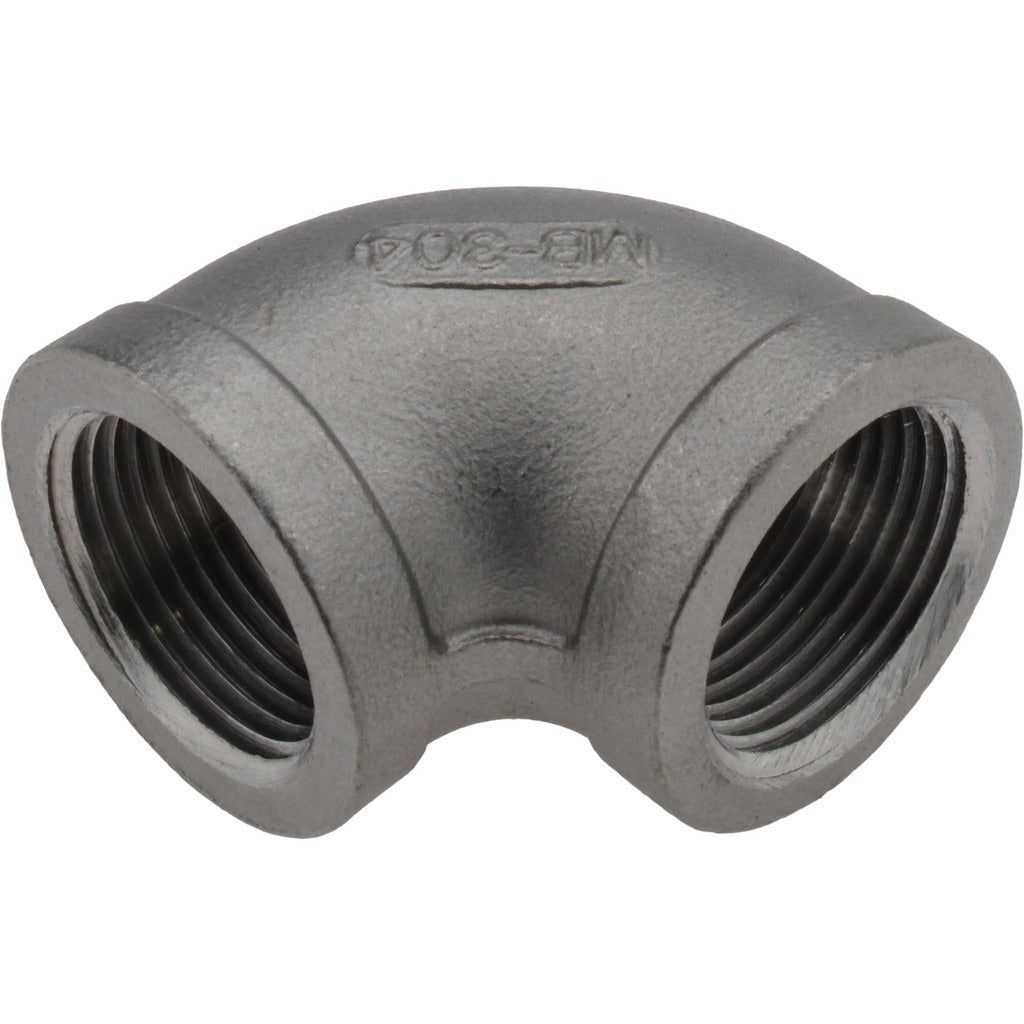

Value Collection 4LB901 90 Degree Pipe Elbow 1 in 304 Ss

Product Description

The VALUE COLLECTION 4LB901 is a 90-degree threaded pipe elbow designed for use in plumbing, piping, and industrial fluid systems requiring directional changes in run. Constructed from 304 stainless steel, this fitting delivers strong corrosion resistance in wet or chemically active environments. It features female NPT (FNPT) connections on both ends and carries a 150 psi pressure rating, making it suitable for low- to moderate-pressure service lines. Rated for Schedule 40 service, the 4LB901 is a standard-duty fitting installed by licensed plumbers and pipefitters in commercial and industrial piping applications.

This elbow is used wherever a 90-degree direction change is required in a 1-inch threaded pipe run. Typical applications include process piping, water supply lines, HVAC condensate and hydronic piping, and general utility service where stainless steel corrosion resistance is required. The FNPT x FNPT connection accepts male-threaded pipe ends on both sides, allowing straightforward integration into existing threaded systems without additional adapters.

Key Features

• 304 stainless steel construction for corrosion resistance in wet and mildly corrosive service environments
• FNPT x FNPT connection on both ends for standard threaded pipe compatibility
• 150 psi pressure rating suitable for low- to moderate-pressure piping systems
• Schedule 40 rated for standard-duty service
• 90-degree elbow geometry for right-angle direction changes in pipe runs
• 1-inch fitting size fits standard 1-inch nominal pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded pipe systems using Schedule 40, 150 psi-rated FNPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the system completely before removing any existing fittings or making new connections. Apply an appropriate thread sealant or PTFE tape to male pipe threads before engagement to ensure a leak-free joint. Do not over-tighten threaded stainless steel fittings, as galling can occur on stainless threads without proper lubrication.
