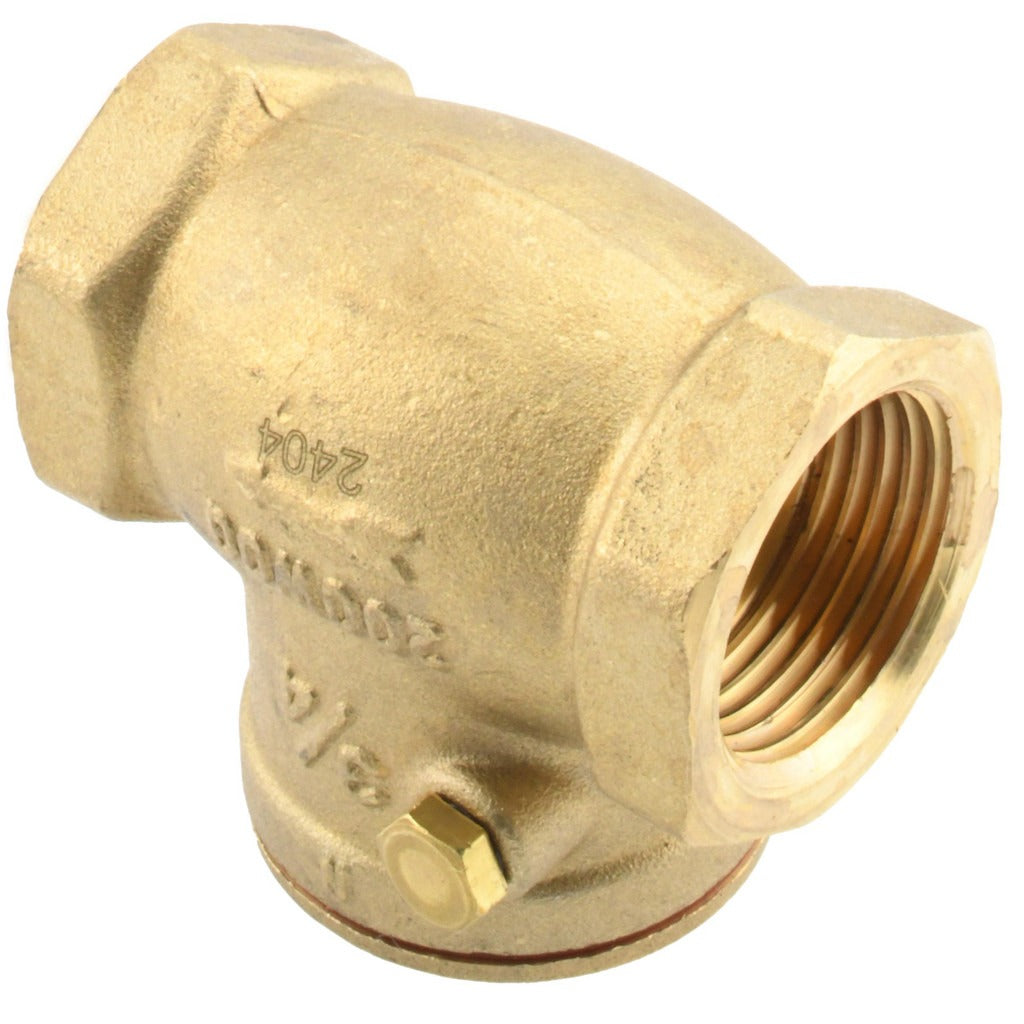

Value Collection 4965302216JP 3/4 in Check Swing Valve

Product Description

The VALUE COLLECTION 4965302216JP is a 3/4 inch check swing valve rated for 200 WOG (Water, Oil, Gas) service. This valve allows flow in one direction and automatically closes to prevent backflow when flow stops or reverses. The brass body and brass seal construction make it well suited for water, oil, and gas lines in a wide range of plumbing and mechanical applications. Both end connections are female NPT (FNPT), allowing direct threaded installation into standard pipe systems. Plumbers and pipefitters install this valve where backflow prevention is required without the need for external actuation or power. Maximum operating temperature is 230 degrees F.

This check valve is designed for residential and light commercial plumbing, HVAC hydronic systems, compressed air lines, and general fluid-handling applications where a 3/4 inch threaded connection is required. The swing-type check mechanism provides low pressure drop compared to lift-type designs, making it appropriate for systems where flow restriction must be minimized. FNPT x FNPT connections thread directly onto male-threaded pipe or fittings without adapters.

Key Features

• 200 WOG pressure rating suitable for water, oil, and gas service
• Brass body and brass seal for corrosion resistance in common plumbing media
• Swing-style check mechanism provides low-resistance, automatic backflow prevention
• FNPT x FNPT connections for straightforward threaded pipe installation
• Rated to 230 degrees F for hot-water and hydronic system use
• Compact form factor: 2.2 inches length, 1.9 inches height, 1.3 inches width

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 3/4 inch threaded pipe systems in residential and commercial plumbing, HVAC hydronic, and general fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the system and drain the line before removing or installing any valve. Apply thread sealant tape or pipe-thread compound to the male threads of the mating pipe or fitting before threading on the valve. Verify the flow-direction arrow on the valve body is oriented correctly with the intended flow path before pressurizing the system.
