Value Collection 466E-420 Pvc Clamp on Saddle 4x2 in Sch 40

Product Description

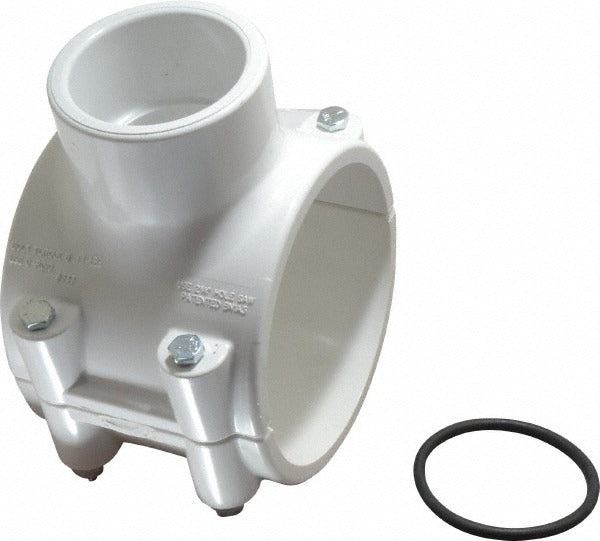

The VALUE COLLECTION 466E-420 is a PVC clamp-on saddle fitting designed for branch connections on Schedule 40 PVC pipe. The fitting features an integrated EPDM O-ring that provides a reliable, leak-resistant seal at the saddle-to-pipe interface. At 4 inches on the run side and 2 inches on the branch side, it accepts a pipe O.D. inlet and a socket end connection on the outlet. Plumbers and pipe fitters use this type of saddle when adding a branch tap to an existing line without cutting out a full tee section.

This saddle fitting is suited for residential and commercial plumbing drain, waste, and vent applications where a field-added branch connection is required on a 4-inch Schedule 40 PVC mainline. The socket-end branch outlet accepts standard 2-inch PVC fittings and pipe. It is commonly installed in new construction and retrofit scenarios where maintaining continuous flow in the main line is a priority during the tap-in process.

Key Features

• PVC construction compatible with Schedule 40 pipe systems
• EPDM O-ring provides a compression seal at the pipe saddle interface
• Clamp-on design allows branch tapping without full line removal
• 4-inch run size with a 2-inch socket-end branch outlet
• Recommended hole size of 2.25 inches for proper branch flow
• Pipe O.D. inlet connection matches standard Schedule 40 outside diameter

Compatibility

Designed as an OEM-style replacement and field-installation fitting for 4-inch Schedule 40 PVC piping systems requiring a 2-inch clamp-on saddle branch connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off flow and depressurize the line before drilling the branch hole. Drill the recommended 2.25-inch hole in the mainline pipe before seating and clamping the saddle. Ensure the EPDM O-ring is properly seated and the saddle is torqued evenly to maintain a uniform seal around the pipe circumference.
