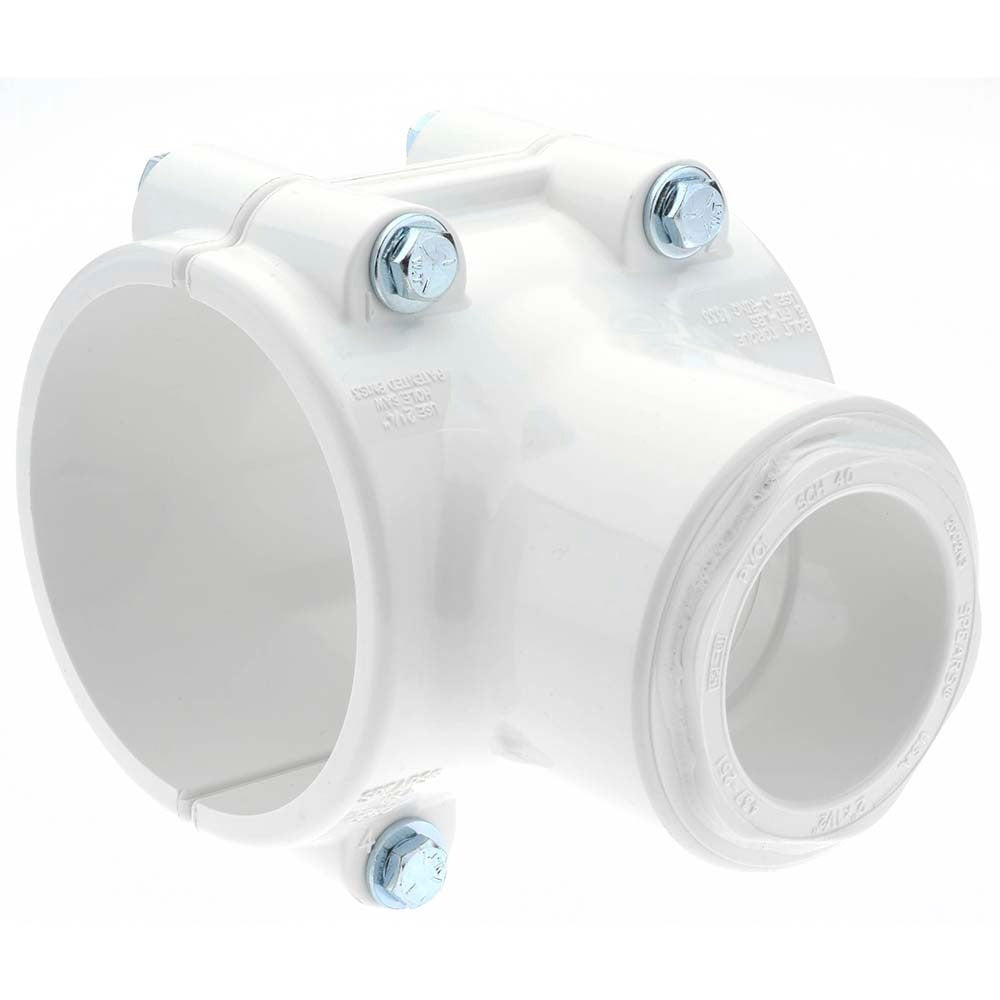

Value Collection 466E-337 Pvc Pipe Saddle Epdm O-ring 3x1.5in Sch40

Product Description

The VALUE COLLECTION 466E-337 is a Schedule 40 PVC clamp-on pipe saddle with an EPDM O-ring, designed to add a branch outlet connection to an existing pipe run without cutting the line. The saddle clamps directly onto a 3-inch pipe O.D. and provides a 1-1/2-inch socket end outlet. The EPDM O-ring creates a reliable, watertight seal at the saddle interface. This fitting is installed by plumbers, irrigation technicians, and pool service professionals working with Schedule 40 PVC systems. Weighing 1.38 pounds, it is a practical, low-disruption solution for tapping into an existing main without full pipe replacement.

The 466E-337 saddle is suited for residential and light commercial applications involving Schedule 40 PVC piping, including irrigation mains, pool and spa plumbing, and general water distribution lines. The clamp-on design allows a branch tap to be made on an active line segment. The recommended hole size for drilling the main pipe before saddle installation is 2-1/4 inches. The socket end outlet accepts standard 1-1/2-inch Schedule 40 PVC pipe or fittings using solvent cement.

Key Features

• Clamp-on saddle design allows branch tapping without removing the existing pipe section
• EPDM O-ring provides a watertight seal between the saddle body and pipe O.D.
• PVC construction is corrosion-resistant and compatible with standard chlorinated water systems
• Fits 3-inch pipe O.D. main with a 1-1/2-inch socket end branch outlet
• Schedule 40 rated for compatibility with standard-wall PVC piping systems
• Recommended hole size of 2-1/4 inches simplifies field preparation with a hole saw

Compatibility

Designed for use with Schedule 40 PVC piping systems using a 3-inch pipe O.D. main and a 1-1/2-inch socket end branch connection. The socket outlet accepts standard 1-1/2-inch Schedule 40 PVC pipe and solvent-weld fittings.

Installation Notes

Installation is performed by licensed plumbers or qualified irrigation and pool technicians. Before drilling the main pipe, shut off flow and depressurize the line. Use a 2-1/4-inch hole saw to prepare the main pipe opening, then clean the pipe O.D. surface before seating the saddle and O-ring. The branch outlet connection uses standard PVC solvent cement applied per the fitting and cement manufacturer instructions, and all work should conform to applicable IPC or local plumbing code requirements.
