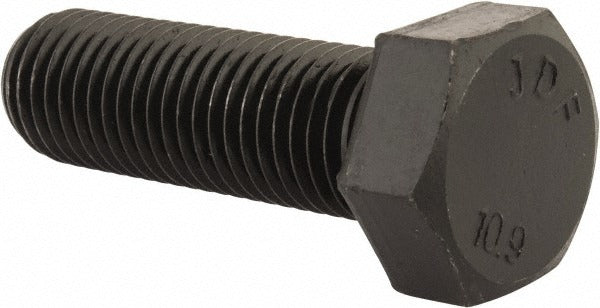

Value Collection 462777PS M24 Hex Cap Screw Grade 10.9

Product Description

The VALUE COLLECTION 462777PS is a fully threaded hex head cap screw engineered to metric specifications for structural and mechanical fastening applications. Built from Grade 10.9 steel with a bright, uncoated finish, this fastener delivers high tensile strength suited for demanding assemblies. It measures M24 x 3.00 thread pitch with a 75 mm length under head and a 36 mm hex drive. Compliance with DIN 933 and ISO 4017 standards makes it a direct fit for metric-specified engineering and fabrication work. Machinists, millwrights, and maintenance technicians working in metric environments will find this screw meets dimensional and strength requirements without modification.

This cap screw is used in a wide range of industrial, mechanical, and structural applications where a high-strength metric fastener is required. Typical uses include heavy equipment assembly, steel structure connections, machinery mounting, and MRO repair tasks. The fully threaded shank allows engagement along the entire bolt length, making it suitable for applications where maximum thread contact is needed or where through-bolting into a nut is standard practice.

Key Features

• Grade 10.9 steel construction provides high tensile and proof load strength for demanding fastening applications
• Fully threaded along the 75 mm shank length for maximum thread engagement
• 36 mm hex head drive compatible with standard metric wrenches and sockets
• Bright, uncoated finish suitable for controlled environments or secondary coating application
• Meets DIN 933 and ISO 4017 dimensional and performance standards

Compatibility

Designed as a metric-standard replacement or general-purpose hex head cap screw for any application specifying an M24 x 3.00 x 75 mm Grade 10.9 fully threaded fastener per DIN 933 or ISO 4017.

Installation Notes

Installation should be performed by a qualified mechanic, millwright, or maintenance technician familiar with metric fastener specifications. Always torque to the value specified by the equipment manufacturer or applicable engineering standard for Grade 10.9 M24 fasteners. Ensure mating threads are clean and free of debris before installation. Do not substitute this uncoated fastener in environments requiring corrosion resistance without applying an appropriate coating or using a rated substitute.
