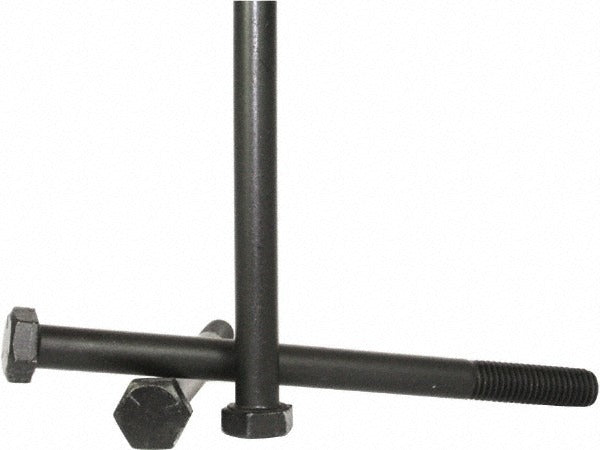

Value Collection 460316PR M24 Hex Cap Screw Grade 10.9

Product Description

The VALUE COLLECTION 460316PR is a metric hex head cap screw designed for high-strength bolted connections in industrial and mechanical assemblies. It is manufactured from Grade 10.9 steel with a zinc-plated finish for basic corrosion resistance. The screw measures M24 x 3.00 thread with a 120 mm length under the head and is partially threaded per DIN 931 specifications. The 36 mm hex drive size suits standard industrial wrenches. At 1.12 pounds, this is a substantial fastener intended for structural and heavy mechanical applications. Installation is performed by qualified mechanics, millwrights, or maintenance technicians working to engineering specifications.

This fastener is suited for use in heavy equipment, structural steel assemblies, machinery frames, and fabricated metal structures where high clamping force and metric fastener standards are required. The DIN 931 partial-thread configuration provides full thread engagement into deep tapped bores while leaving a smooth shank in the grip area, which improves shear resistance. It is appropriate for both OEM production assembly and MRO replacement use in metric-spec equipment.

Key Features

• Grade 10.9 steel construction delivers high tensile and proof load strength for demanding structural applications
• Zinc-plated finish provides baseline corrosion protection in dry to mildly humid environments
• Partially threaded per DIN 931 for clean shank engagement in through-bolt and deep-bore applications
• M24 x 3.00 metric thread standard ensures compatibility with standard metric tapped components
• 36 mm hex drive accommodates standard industrial open-end, box, and impact wrenches

Compatibility

Designed as an OEM-style replacement or MRO supply fastener for metric-threaded assemblies requiring an M24 x 3.00 DIN 931 Grade 10.9 hex head cap screw.

Installation Notes

Installation should be performed by a qualified mechanic or millwright following the torque specifications provided by the equipment or structure designer. De-energize and lock out any machinery before fastener replacement or assembly work. Use calibrated torque tools to achieve the design clamping load — do not estimate torque by feel on Grade 10.9 fasteners. Inspect threads in the mating component for damage or corrosion before installation.
