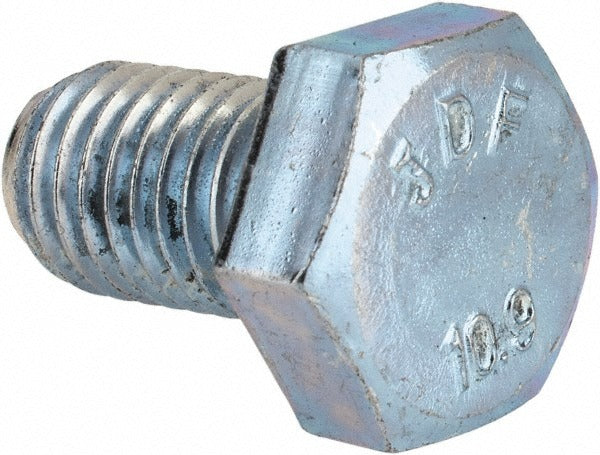

Value Collection 460109PS M12 Hex Cap Screw Grade 10.9

Product Description

The VALUE COLLECTION 460109PS is a metric hex head cap screw designed for high-strength mechanical fastening applications. Manufactured from Grade 10.9 steel with a zinc-plated finish, this screw delivers strong clamping force and basic corrosion resistance in a compact M12 x 1.75 thread profile. The 20 mm length under head and fully threaded shank conform to DIN 933 and ISO 4017 standards, making this a recognized fastener in structural and industrial assembly work. The 19 mm hex drive allows installation with standard metric wrenches or sockets. This fastener is sold individually but requires a minimum order quantity of 100 units.

This screw is suited for general industrial, mechanical, and structural assembly applications where metric fasteners are specified. It performs in equipment mounting, machinery frames, brackets, and fabricated steel assemblies that call for a fully threaded M12 cap screw. The zinc plating provides a baseline level of corrosion protection appropriate for indoor and light-duty outdoor environments. Machinists, millwrights, maintenance technicians, and industrial assemblers are the primary installers of this fastener type.

Key Features

• Grade 10.9 steel construction for high tensile and proof load strength
• Fully threaded shank per DIN 933 and ISO 4017 standards
• M12 x 1.75 mm thread for compatibility with standard metric hardware
• Zinc-plated finish provides basic corrosion resistance
• 19 mm hex drive accepts standard metric wrenches and sockets
• 20 mm length under head suits shallow-engagement fastening applications

Compatibility

Designed as a standard metric replacement or new-installation fastener for assemblies specifying an M12 x 1.75 x 20 mm fully threaded hex cap screw per DIN 933 or ISO 4017.

Installation Notes

Installation is performed with a 19 mm open-end, box, or socket wrench. Always verify that the mating nut or tapped hole carries a compatible M12 x 1.75 thread before installation. De-energize and lock out any equipment before replacing fasteners on live machinery. Apply thread-locking compound or washers per the assembly specification if vibration resistance is required.
