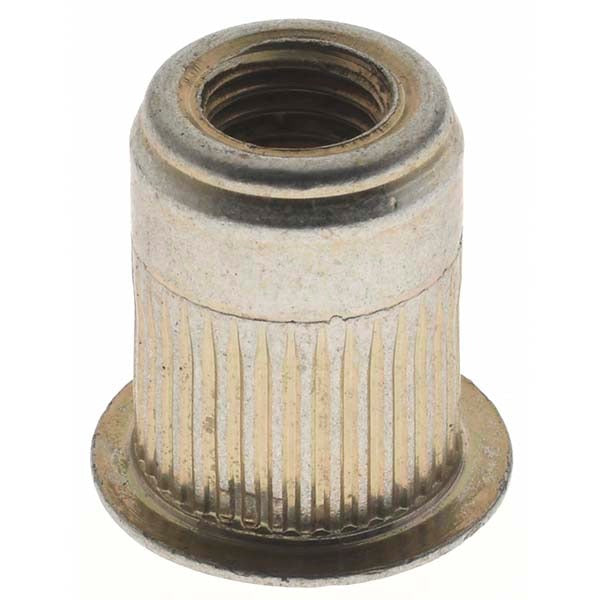

Value Collection 45207 Threaded Insert 5/16-24 0.53 in

Product Description

The VALUE COLLECTION 45207 is a knurled body open end threaded insert designed for use in thin sheet metal, plastics, and composite panels where a strong, permanent internal thread is required. This insert features a 5/16-24 thread size, an overall length (OAL) of 0.69 inches, and an insert diameter of 0.53 inches. Constructed from 1008/1010 steel with a clear protective coating and zinc yellow dichromate finish, it resists corrosion in moderate service environments. The knurled exterior body locks securely into the host material upon installation, preventing rotation under load. Suitable for mechanical assembly applications across industrial and commercial fabrication work.

This threaded insert is used in applications where a standard tapped hole is not practical due to limited material thickness or access to only one side of the workpiece. The open end design allows a fastener to pass through completely, accommodating varying fastener lengths. It is suited for use in sheet metal enclosures, junction boxes, equipment panels, and light structural assemblies. Installation requires a standard threaded insert installation tool or mandrel press. The grip range spans 0.027 to 0.15 inches, covering a range of panel thicknesses in typical light-gauge fabrication work.

Key Features

• 5/16-24 internal thread size for standard fractional fasteners
• Knurled body exterior locks into host material and resists rotation
• Open end design accommodates full fastener pass-through
• 1008/1010 steel construction with zinc yellow dichromate finish for corrosion resistance
• Grip range of 0.027 to 0.15 inches for light-gauge panel compatibility
• Insert diameter of 0.53 inches with a required hole diameter of 0.5312 inches

Compatibility

Designed as an OEM-style replacement or standard threaded insert for light-gauge steel, plastic, and composite panel assemblies requiring a 5/16-24 internal thread in a 0.5312-inch prepared hole.

Installation Notes

Installation is performed using a threaded insert installation tool or arbor press with the appropriate mandrel for the 5/16-24 thread size. The host material must be pre-drilled to a hole diameter of 0.5312 inches before insertion. Ensure the workpiece is secured and free of burrs at the hole edge prior to driving the insert. Follow applicable facility safety procedures and de-energize any equipment before servicing panels or enclosures that house these inserts.
