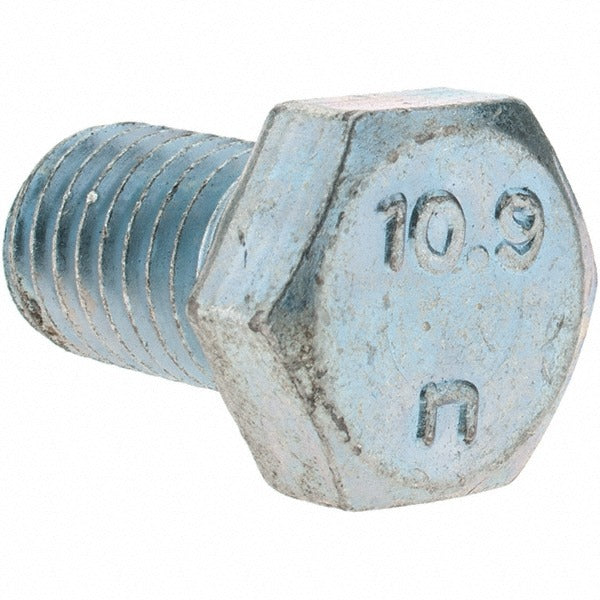

Value Collection 44499 M12 X 1.75 X 20 Mm Hex Cap Screw 25pk

Product Description

The Value Collection 44499 is a fully threaded hex head cap screw designed for metric fastening applications requiring high-strength hardware. Built to Grade 10.9 steel with a zinc-plated finish, this screw meets DIN 933 and ISO 4017 standards, making it a reliable choice for structural and mechanical assemblies. The M12 x 1.75 thread size with a 20 mm length under head suits a wide range of medium-duty clamping and bolting tasks. A 19 mm hex drive allows installation with standard metric hex tooling. Each package contains 25 screws.

This cap screw is suited for industrial, mechanical, and general construction applications where metric fasteners are specified. Grade 10.9 strength class makes it appropriate for higher-stress connections such as machinery frames, brackets, flanges, and structural steel assemblies. It is commonly installed by machinists, millwrights, pipefitters, and general contractors working to metric design standards. The zinc-plated finish provides a basic level of corrosion resistance for indoor and semi-exposed environments.

Key Features

• Grade 10.9 steel construction for high-tensile fastening applications
• Fully threaded along the shank for maximum thread engagement
• Zinc-plated finish offers basic corrosion resistance
• Meets DIN 933 and ISO 4017 dimensional and performance standards
• 19 mm hex drive accepts standard metric open-end, box, or socket wrenches
• Packaged in quantities of 25 per unit

Compatibility

Designed as a standard metric replacement or new-installation fastener for any application specifying an M12 x 1.75 x 20 mm fully threaded hex head cap screw per DIN 933 or ISO 4017.

Installation Notes

Installation is performed with a 19 mm metric wrench or socket. Verify that the mating threaded hole or nut matches the M12 x 1.75 metric coarse thread specification before installation. Follow applicable torque specifications from the equipment manufacturer or relevant structural code for Grade 10.9 fasteners. Zinc-plated screws are not recommended for continuously wet or corrosive environments without additional protective measures.
