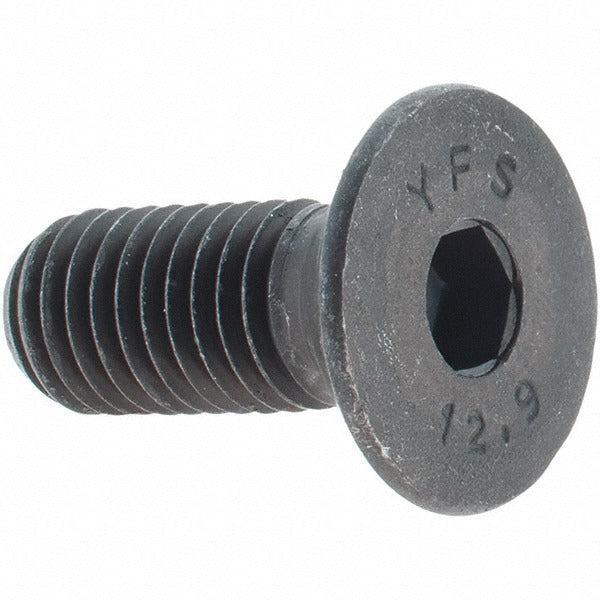

Value Collection 43167 M10x1.5 Flat Socket Cap Screw 25mm

Product Description

The VALUE COLLECTION 43167 is a flat socket cap screw designed for applications requiring a flush or countersunk fastener profile. Built to DIN 7991 standard, this screw features an M10x1.5 metric thread and a 10.9 material grade alloy steel construction, making it suitable for high-strength clamping applications. The 90-degree flat head seats flush with the mating surface when installed in a properly prepared countersunk hole. Drive engagement is achieved through a 6 mm hex socket. The black oxide finish provides mild corrosion resistance and reduces light reflection in service environments. Licensed tradespeople and maintenance technicians working with metric hardware and structural assemblies are the primary installers.

This flat socket cap screw is used across a broad range of mechanical, industrial, and equipment assembly applications where a low-profile, flush-mount fastener is required. The fully threaded M10x1.5 shank at 25 mm overall length suits medium-depth countersunk holes in metal fabrication, machinery frames, brackets, and enclosure panels. The metric thread standard and DIN 7991 compliance make this screw interchangeable in metric-dimensioned assemblies found in HVAC equipment, electrical enclosures, and general mechanical systems.

Key Features

• DIN 7991 standard flat socket cap screw for consistent dimensional compliance
• M10x1.5 metric thread, fully threaded along the 25 mm overall length
• 10.9 grade alloy steel provides high tensile and proof load strength
• 90-degree flat head seats flush in standard countersunk holes
• 6 mm hex socket drive for use with standard hex keys and socket tooling
• Black oxide finish for mild corrosion resistance and reduced glare

Compatibility

Designed as a DIN 7991-compliant metric flat socket cap screw suitable for use in countersunk hole patterns dimensioned for M10x1.5 fasteners in metric hardware assemblies.

Installation Notes

Install using a calibrated 6 mm hex key or hex socket driver. Ensure the mating countersunk hole is machined to the correct 90-degree angle and depth before driving the fastener. De-energize or shut down any associated equipment before servicing fasteners in live assemblies. Follow applicable industry torque specifications for 10.9 grade M10 fasteners as defined by your job specification or equipment OEM documentation.
