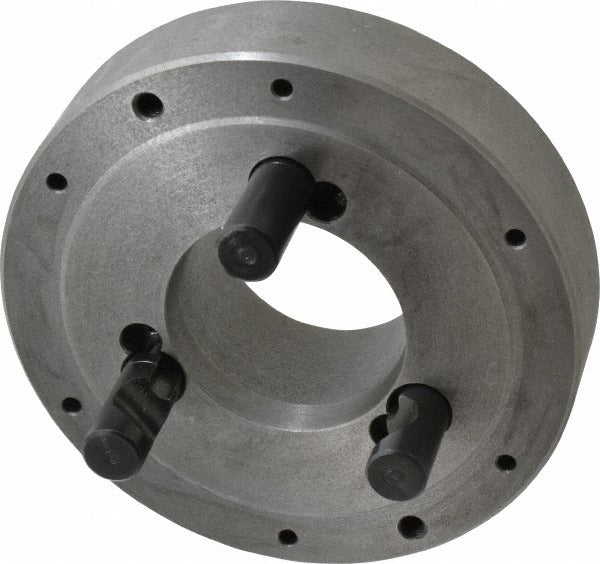

Value Collection 429-3719 Lathe Chuck Adapter Back Plate

Product Description

The VALUE COLLECTION 429-3719 is a lathe chuck adapter back plate designed to mount a 6-inch chuck to a D1-4 camlock spindle nose. The back plate serves as the interface between the lathe spindle and the chuck body, allowing secure attachment and accurate chuck positioning. It is manufactured to fit the D Series spindle nose standard, specifically the D1-4 taper-cam configuration common on mid-size engine lathes and toolroom lathes. Machinists and machine tool technicians install this component during chuck changeovers or when setting up a new chuck on a compatible spindle. Weighing 7.16 pounds, it is a solid, precision-machined part built for repeatable, rigid chuck mounting.

This back plate is suited for shop environments running lathes with a D1-4 spindle nose where a 6-inch chuck is the specified tooling size. Typical applications include general-purpose turning, facing, and boring operations in job shops, maintenance shops, and production environments. The adapter is sized for a 6.0000-inch chuck diameter and matches the D Series mounting geometry. Installation is performed during scheduled chuck changes or when configuring a lathe for a specific workholding setup.

Key Features

• Fits 6-inch nominal chuck size with 6.0000-inch chuck diameter compatibility
• D1-4 camlock mount for secure, repeatable spindle-to-chuck connection
• D Series spindle nose type for broad compatibility with mid-size lathe spindles
• Solid construction at 7.16 pounds for rigid, vibration-resistant chuck support
• UNSPSC Code 31162907 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement or new-setup adapter back plate for lathes equipped with a D1-4 camlock spindle nose accepting a 6-inch chuck.

Installation Notes

Installation of a chuck adapter back plate is performed by a qualified machinist or machine tool technician. Power down and lock out the lathe before handling any spindle components. Clean the spindle nose taper and camlock pins thoroughly before seating the back plate to ensure accurate registration and prevent fretting. Torque the camlock studs evenly and verify runout with a dial indicator before putting the chuck into service.
