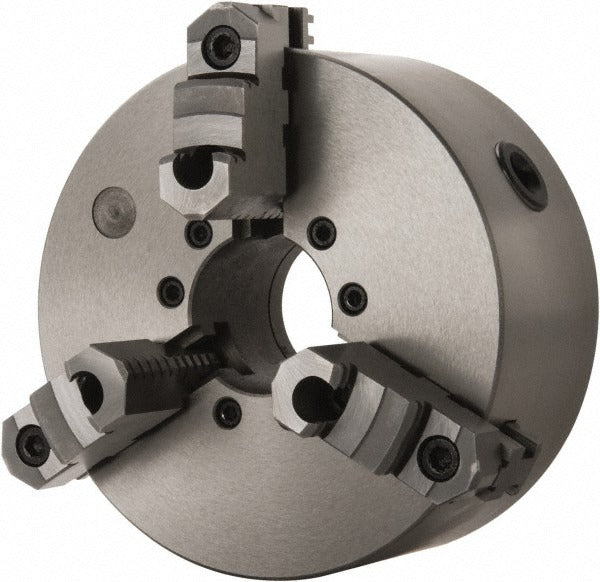

Value Collection 429-3086 Manual Lathe Chuck 8 in 3 Jaw D1-6

Product Description

The VALUE COLLECTION 429-3086 is a manual, self-centering 3-jaw lathe chuck designed for metal turning operations on engine lathes and similar manual machine tools. The chuck measures 8 inches in diameter and features a D1-6 direct mount spindle interface, making it compatible with lathes equipped with a D1-6 camlock spindle nose. The body is cast iron construction. A 1.97-inch (50 mm) through-hole allows bar stock to pass through the spindle. Reversible two-piece jaws extend the holding range for both outside-diameter and inside-diameter clamping. This chuck is installed and serviced by machinists and machine tool technicians in job shop, production, and maintenance environments.

This chuck suits general-purpose turning work on manual engine lathes with a D1-6 spindle nose. The self-centering scroll mechanism grips round and hex workpieces simultaneously across all three jaws with a single wrench input, reducing setup time for repetitive turning operations. The reversible jaw design accommodates a wider range of workpiece diameters without requiring separate jaw sets. Typical applications include shaft turning, facing, and boring operations in machine shops, toolrooms, and industrial maintenance facilities.

Key Features

• 8-inch chuck diameter provides a substantial gripping envelope for medium to large workpieces
• Self-centering 3-jaw scroll design grips round and hex stock simultaneously for fast, repeatable setup
• D1-6 direct mount interface fits lathes with a D1-6 camlock spindle nose without an adapter plate
• 1.97-inch (50 mm) through-hole diameter allows bar stock feeding through the spindle
• Reversible two-piece jaws support both OD and ID clamping configurations
• Cast iron body provides rigidity and vibration damping during turning operations

Compatibility

Designed for use on manual engine lathes equipped with a D1-6 camlock spindle nose. Direct mount configuration requires no intermediate adapter.

Installation Notes

Installation should be performed by a qualified machinist or machine tool technician. Before mounting or removing the chuck, disconnect and lock out power to the lathe in accordance with applicable OSHA lockout/tagout procedures. Clean the spindle nose camlock studs and chuck mounting face thoroughly before seating the chuck; debris on the mating surfaces affects runout. Torque camlock pins to the lathe manufacturer's specification using the correct chuck wrench — never use a pipe extension on the chuck wrench.
