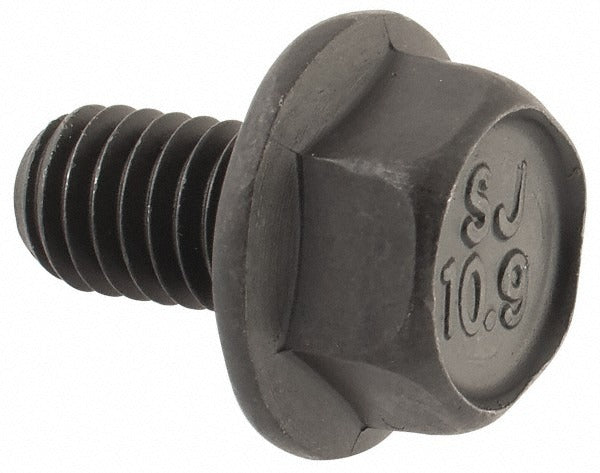

Value Collection 427010MSC Smooth Flange Bolt M6 X 1

Product Description

The VALUE COLLECTION 427010MSC is a smooth flange bolt designed for metric fastening applications where a wide bearing surface and clean, serration-free flange contact are required. This hex-drive bolt features an M6 x 1 thread with a 10 mm length under head and a 14.2 mm smooth flange diameter. Manufactured from Grade 10.9 alloy steel with a phosphate and oil finish for corrosion resistance, it meets DIN 6921 and DIN ISO 898-1 standards. Machinists, assembly technicians, and maintenance professionals use this fastener in general industrial, mechanical, and light structural applications.

This bolt is suited for metric-threaded assemblies where the integrated flange distributes clamping load across a larger surface area than a standard hex bolt head. The smooth flange design is appropriate when mating surfaces must remain unmarked or when serrations are not desired. Typical applications include machine frames, equipment panels, and precision assemblies requiring controlled clamping force at Grade 10.9 strength levels.

Key Features

• M6 x 1 metric thread with 10 mm length under head for compact fastening
• 14.2 mm smooth flange diameter distributes clamp load without serrations
• Grade 10.9 alloy steel provides high tensile strength for demanding assemblies
• Phosphate and oil finish offers baseline corrosion and wear resistance
• Complies with DIN 6921 and DIN ISO 898-1 dimensional and mechanical standards
• Hex drive, 9.78 to 10 mm drive size, compatible with standard metric hex tooling

Compatibility

Designed for use in metric-threaded assemblies conforming to DIN 6921 specifications where an M6 x 1 smooth flange bolt with 10 mm length under head is required.

Installation Notes

Installation should be performed by qualified mechanical or assembly technicians using calibrated metric hex tooling appropriate for the 9.78 to 10 mm drive size. Verify that mating thread condition and thread engagement depth meet design requirements before torquing. Do not mix metric and imperial fasteners in the same assembly. Follow applicable equipment manufacturer torque specifications and relevant industry standards for Grade 10.9 fasteners.
