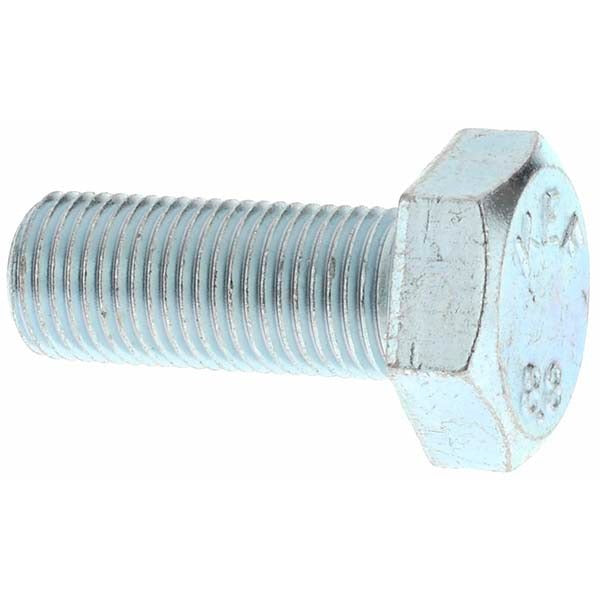

Value Collection 42284 M10x1.00mm Hex Head Cap Screw

Product Description

The VALUE COLLECTION 42284 is a metric fine hex head cap screw designed for precision fastening applications where standard coarse threads are not suitable. The M10x1.00mm thread pitch provides a finer thread engagement than standard M10 coarse, making it appropriate for applications requiring controlled clamping force or vibration resistance. The screw is fully threaded at 25mm in length, features a 17mm hex drive head, and is manufactured from Grade 8.8 steel with a zinc-plated finish to provide baseline corrosion resistance. Machinists, millwrights, and general maintenance technicians commonly install these fasteners in precision mechanical assemblies.

This fastener is suited for use in mechanical, industrial, and light structural assemblies where metric fine thread specifications are called out in engineering drawings or OEM service documentation. The fully threaded body makes it appropriate for through-bolt applications and shorter clamping situations. It conforms to DIN 933 and ISO 4017 standards, making it a recognized specification fastener across European and international equipment platforms. This screw is sold in a package quantity of 50 units per order.

Key Features

• M10x1.00mm metric fine thread — finer pitch than standard M10 coarse for greater vibration resistance
• Fully threaded 25mm length for maximum thread engagement in through-bolt applications
• Grade 8.8 steel construction provides high tensile strength suitable for mechanical assemblies
• Zinc-plated finish for baseline corrosion protection
• 17mm hex head for use with standard metric wrenches and sockets
• Conforms to DIN 933 and ISO 4017 standards

Compatibility

Designed as a standard DIN 933 and ISO 4017 compliant metric fine hex head cap screw for use in mechanical and industrial assemblies specifying M10x1.00mm thread form.

Installation Notes

Installation is typically performed by machinists, millwrights, or maintenance technicians using a metric wrench or socket set. Verify the mating thread is cut to M10x1.00mm fine pitch before installation, as M10 fine and coarse thread fasteners are not interchangeable. Follow the equipment manufacturer's torque specifications for the application. Zinc-plated fasteners should not be used in highly corrosive or submerged environments without additional protective measures.
