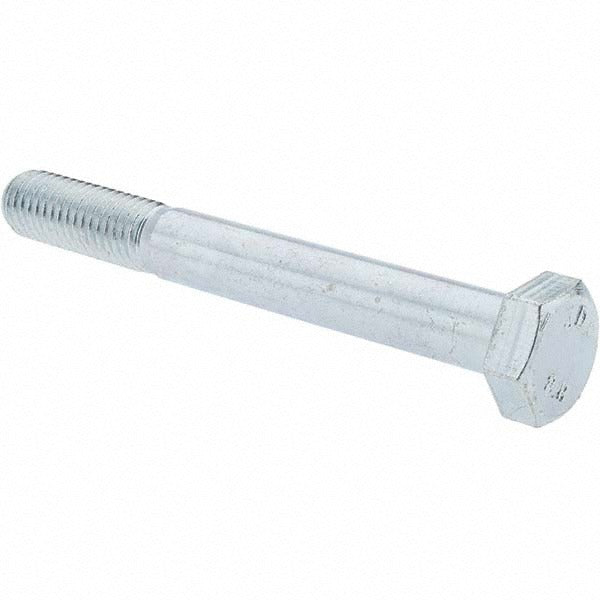

Value Collection 42116 Hex Head Cap Screw M12 X 1.75

Product Description

The Value Collection 42116 is a metric hex head cap screw designed for general industrial and mechanical fastening applications. It is manufactured from Grade 8.8 steel with a zinc-plated finish that provides basic corrosion resistance in standard service environments. The screw measures M12 x 1.75 thread pitch with a 100 mm length under head and is partially threaded, conforming to DIN 933 and ISO 4017 standards. A 19 mm hex drive is used for installation. This fastener is suited for use by millwrights, maintenance technicians, machinists, and mechanical assemblers working on equipment, structural assemblies, and machinery.

This screw is appropriate for metric fastening applications in light to medium industrial settings, including equipment frames, machine mounts, bracket assemblies, and general structural connections. The partial thread design provides a smooth shank section, which is standard for through-bolt and clamping applications where the unthreaded portion bears shear load or serves as a locating surface. Each package contains 10 pieces.

Key Features

• M12 x 1.75 metric thread size with 100 mm length under head
• Grade 8.8 steel construction for medium-strength fastening requirements
• Zinc-plated finish for basic corrosion protection in standard environments
• Partially threaded shank per DIN 933 and ISO 4017 standards
• 19 mm hex drive compatible with standard metric wrenches and sockets
• Sold in a package of 10 pieces

Compatibility

Designed as a standard metric hex head cap screw for any application requiring an M12 x 1.75 thread pitch fastener conforming to DIN 933 or ISO 4017 dimensional standards.

Installation Notes

Installation is performed using a 19 mm open-end, box-end, or socket wrench. Always verify thread engagement and confirm mating thread condition before assembly. Follow engineering specifications or equipment manufacturer torque requirements for the specific joint being fastened. Inspect zinc plating for damage before installation in corrosion-sensitive environments.
