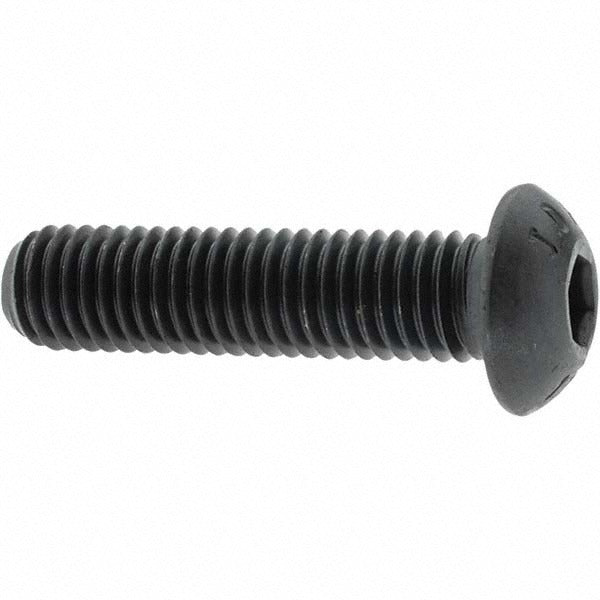

Value Collection 41950 M10x1.50 Button Cap Screw

Product Description

The VALUE COLLECTION 41950 is a fully threaded button socket cap screw designed for metric fastening applications requiring a low-profile head and high clamping strength. It features an M10x1.50 thread size with a 40mm length under head, finished in black oxide for corrosion resistance and a clean appearance. Manufactured from Grade 10.9 alloy steel, this screw delivers high tensile strength suitable for demanding mechanical assemblies. The hex socket drive accepts a 6mm hex key, allowing installation in confined spaces where wrenches cannot reach. It conforms to ISO 7380 standards and carries a right-hand, fully threaded configuration with a 4G/6G thread fit class.

This button socket cap screw is suited for use in mechanical, industrial, and equipment assembly applications where a flush or near-flush head profile is required. The metric thread standard makes it a direct fit for machinery, enclosures, brackets, and structural components built to metric specifications. It is commonly used in manufacturing, maintenance, and repair work across a range of industries. Minimum order quantity is 25 pieces, sold as a single package quantity.

Key Features

• M10x1.50 metric thread with right-hand direction and 4G/6G thread fit class
• 40mm length under head, fully threaded
• Grade 10.9 alloy steel construction for high tensile strength
• Black oxide finish for mild corrosion resistance and reduced light reflection
• 6mm hex socket drive for use with standard hex keys in tight access areas
• Conforms to ISO 7380 fastener standard

Compatibility

Designed as a metric-standard button socket cap screw per ISO 7380, compatible with M10x1.50 threaded holes in assemblies built to metric specifications.

Installation Notes

Installation is performed with a 6mm hex key or socket bit driver. Ensure the mating threaded hole or nut is clean and free of debris before driving. Follow applicable torque specifications for Grade 10.9 fasteners as defined by the equipment manufacturer or relevant fastener standards. Always de-energize or isolate equipment before fastener work on live assemblies.
