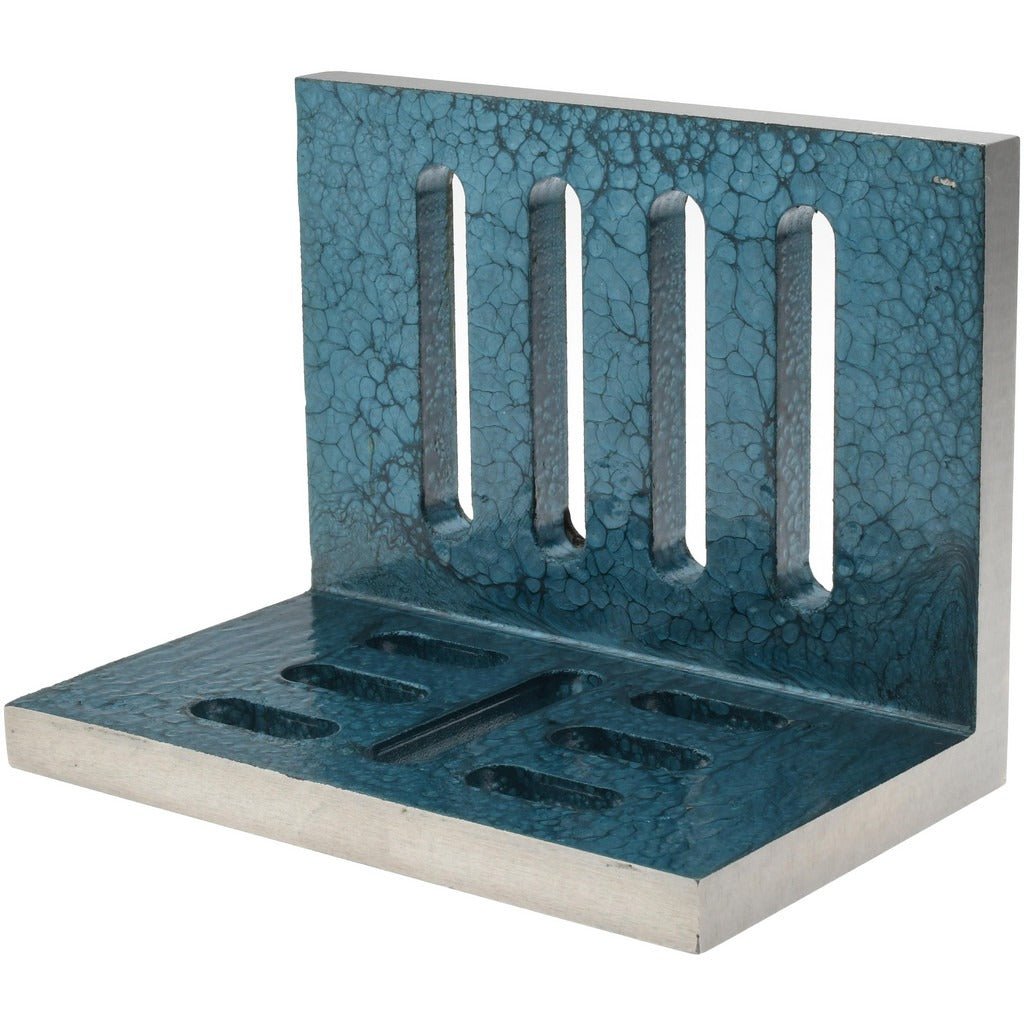

Value Collection 418-4735 Cast Iron Angle Plate 8x5x6 in

Product Description

The VALUE COLLECTION 418-4735 is a single cast iron angle plate designed for use in machining, inspection, and workholding applications. It features a partially machined finish and through-slots on the plate surface, which allow for flexible workpiece clamping and fixturing. Measuring 8 inches wide, 5 inches deep, and 6 inches high, this plate provides a stable right-angle reference surface for setups on mill tables, surface plates, and inspection benches. At 16 pounds, it offers solid rigidity without excessive mass. The open-end design allows long workpieces to extend beyond the plate during setup.

This angle plate is suited for machine shops, tool rooms, and metrology environments. It is typically used by machinists and quality technicians when squaring parts for milling, drilling, or layout inspection. The through-slot configuration supports a range of strap clamp and T-slot bolt arrangements, making it adaptable to varied fixturing requirements. It is sold as a single plate.

Key Features

• Cast iron construction provides rigidity and vibration damping during machining operations
• Partially machined finish on reference surfaces for accurate right-angle setups
• Through-slots on the plate surface accommodate strap clamps and T-slot hardware
• Open-end design allows long or irregularly shaped workpieces to extend past the plate
• Compact 8 x 5 x 6 inch footprint fits standard mill tables and surface plates
• Sold as a single plate for flexible quantity purchasing

Compatibility

Designed as an OEM-style replacement and general-use fixturing component compatible with standard mill tables, surface plates, and inspection setups that accept strap clamp and T-slot bolt arrangements.

Installation Notes

Installation is performed by machinists or toolroom technicians. Ensure the machine table or surface plate is clean and free of chips before seating the angle plate. Secure the plate using appropriate T-slot hardware through the surface slots before clamping any workpiece. Verify squareness with a dial indicator before beginning machining or inspection operations.
