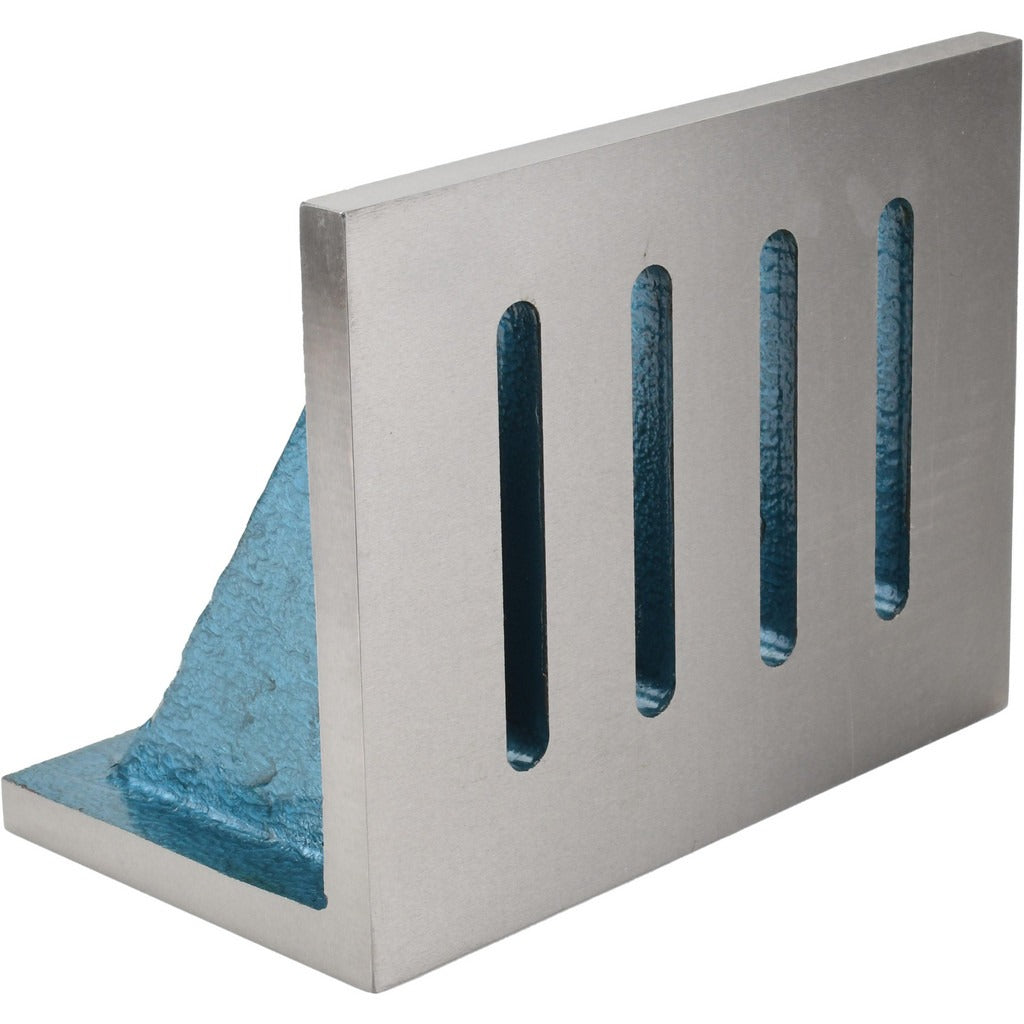

Value Collection 418-4545 Cast Iron Angle Plate 10x6x8 in

Product Description

The VALUE COLLECTION 418-4545 is a cast iron angle plate designed for use in machining, inspection, and workholding applications. It measures 10 inches wide, 6 inches deep, and 8 inches high, providing a sturdy 90-degree reference surface for layout work, drilling setups, and milling operations. The plate features a partially machined finish and a slotted surface with through-slots, allowing clamps and bolts to secure workpieces at various positions. At 32 pounds, it offers substantial mass to dampen vibration and maintain stability during precision work. Machinists, toolmakers, and setup technicians are the primary users of this component.

This angle plate is suited for use on surface plates, machine tool tables, and inspection benches in both job shop and production environments. The webbed construction adds structural rigidity without unnecessary added weight, making it appropriate for general-purpose fixturing tasks. The through-slots on the plate surface accept standard T-slot bolts and strap clamps commonly found in most machine shop inventories. It ships as a single plate.

Key Features

• Cast iron construction provides vibration damping and long-term dimensional stability
• Partially machined finish on working surfaces for accurate part registration
• Through-slots on the plate surface for flexible clamping positions
• Webbed design adds rigidity while managing overall weight
• Supplied as a single plate ready for immediate use

Compatibility

Designed as an OEM-style replacement and general-purpose fit for standard machine tool tables, surface plates, and inspection setups requiring a rigid 90-degree workholding reference.

Installation Notes

Installation is typically performed by machinists or toolroom technicians. Before placing or repositioning the plate, ensure the machine table or surface plate is clean and free of chips and debris that could affect seating accuracy. At 32 pounds, use proper lifting technique or mechanical assistance when handling. Verify all clamping hardware is torqued securely before beginning any machining or inspection operation.
