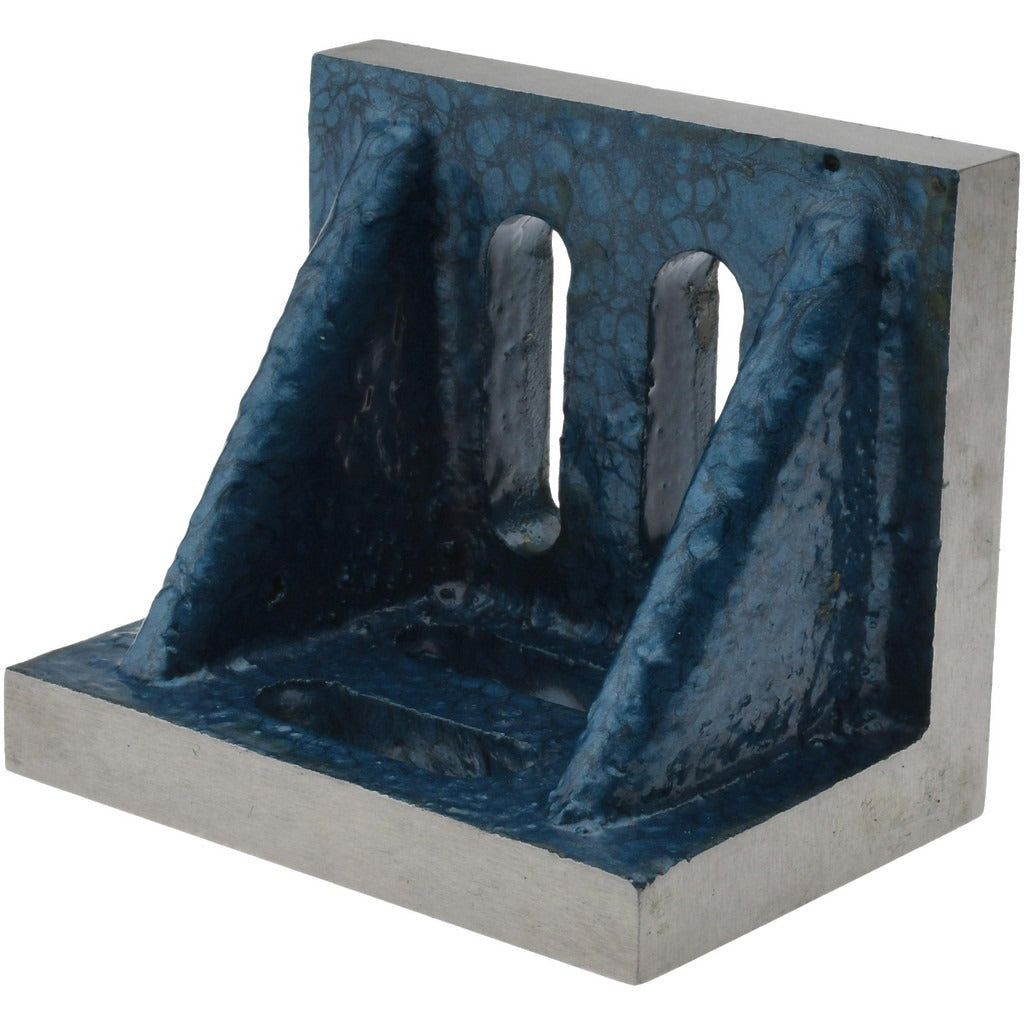

Value Collection 418-4515 Cast Iron Angle Plate Slotted

Product Description

The VALUE COLLECTION 418-4515 is a cast iron angle plate designed for workholding, fixturing, and layout applications in machine shops and industrial settings. The plate features a partially machined finish and through-slots on its mounting surface, allowing flexible positioning of clamps, bolts, and workpieces. Measuring 3.5 inches wide, 2.5 inches deep, and 3 inches high, it is a compact single-plate unit suited for bench-top setups. The webbed construction adds rigidity while keeping weight manageable at 1.12 pounds. Machinists, tool-and-die makers, and maintenance technicians use this type of angle plate to hold workpieces square during milling, drilling, and inspection operations.

This angle plate is appropriate for light-duty fixturing tasks in both production and maintenance environments. The slotted plate style provides flexibility for positioning clamps without requiring additional drilling. The single-plate format makes it a straightforward solution for setups where a matched pair is not required. It is well suited for benchtop milling machines, drill presses, and surface plates in job shops, maintenance departments, and trade training facilities.

Key Features

• Through-slots on the plate surface allow flexible clamp and fastener positioning
• Webbed design provides structural rigidity without excess material
• Partially machined cast iron finish for dimensional accuracy on critical faces
• Compact 3.5 x 2.5 x 3 inch footprint fits benchtop and smaller machine setups
• Single-plate unit for straightforward fixturing applications
• Lightweight at 1.12 pounds for easy repositioning during setup

Compatibility

Designed as a general-purpose angle plate compatible with standard T-slot tables, surface plates, and drill press tables that accept slotted workholding accessories.

Installation Notes

Angle plates of this type are typically set up by machinists or tool-and-die technicians. Ensure the machine table or surface plate is clean and free of chips before positioning the angle plate. Secure the plate firmly using appropriate T-slot bolts or clamps rated for the intended load before beginning any machining or layout operation. Do not exceed the load capacity appropriate for the plate size and casting grade.
