Value Collection 418-4430 Cast Iron Angle Plate 6x6x6 in

Product Description

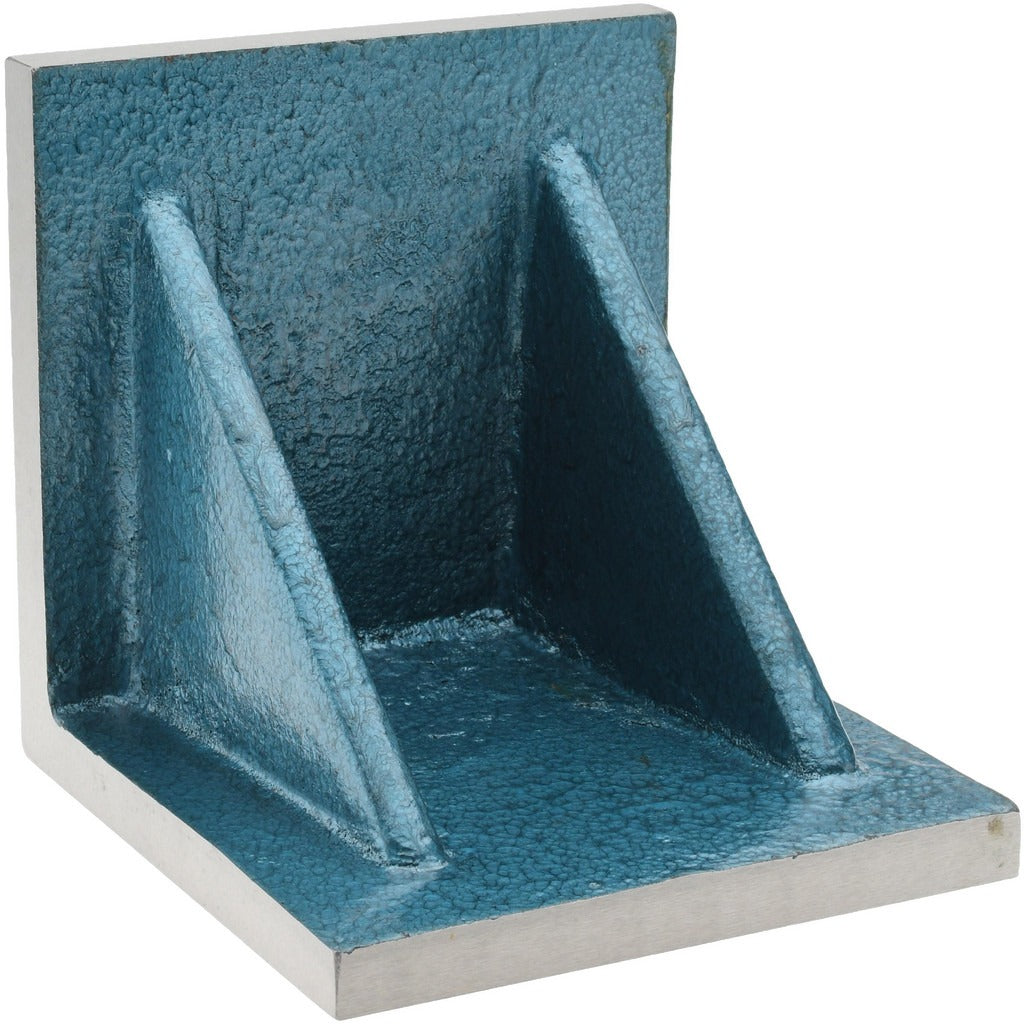

The VALUE COLLECTION 418-4430 is a precision-ground cast iron angle plate designed for use in machining, inspection, and layout operations. Measuring 6 inches wide, 6 inches deep, and 6 inches high, this standard single plate features a flat surface and double web construction for rigidity and stability. The precision-ground finish delivers a squareness tolerance of 0.0018 inches and parallelism of 0.0050 inches, making it suitable for demanding setups where accurate 90-degree reference surfaces are required. At 17 pounds, it provides substantial mass to resist movement during use. Machinists, tool and die makers, and quality control technicians are the primary users of this type of tooling component.

This angle plate is intended for use on surface plates, milling machine tables, and inspection benches in machine shops and manufacturing environments. It serves as a rigid reference fixture for holding workpieces at 90 degrees during milling, drilling, grinding, and inspection tasks. The double web design adds structural support without adding unnecessary bulk, keeping the plate square under load. It is suited for both production and toolroom applications where consistent angular reference is critical.

Key Features

• Precision-ground flat surface with squareness tolerance of 0.0018 inches
• Parallelism held to 0.0050 inches for accurate setups
• Double web construction for increased rigidity under clamping loads
• Cast iron material provides vibration damping and dimensional stability
• Standard single plate style at 6 x 6 x 6 inches for versatile fixturing
• 17-pound mass resists shifting during machining and inspection operations

Compatibility

Designed as an OEM-style precision reference tool suitable for standard surface plate and machine table setups requiring a 6 x 6 x 6 inch angle plate fixture.

Installation Notes
