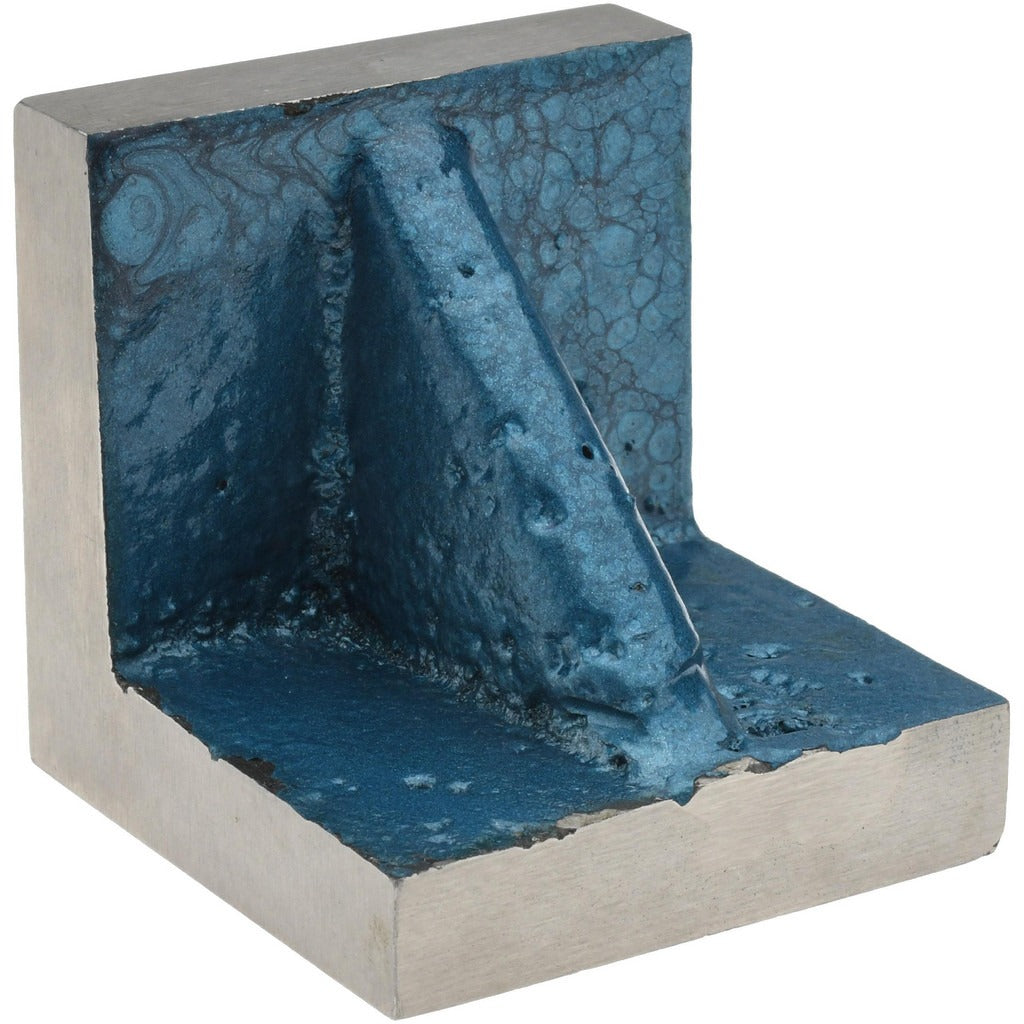

Value Collection 418-4310 Cast Iron Angle Plate 2x2x2 in

Product Description

The VALUE COLLECTION 418-4310 is a single, double-web cast iron machined angle plate designed for use in precision fixturing, layout work, and machining setups. Measuring 2 inches wide, 2 inches deep, and 2 inches high, this compact angle plate features a flat surface finish and a standard plate style. The double-web construction adds rigidity while keeping the unit lightweight at 1 pound. Parallelism is held to 0.005 inch and squareness to 0.0036 inch, making it a reliable reference surface for machine shop and toolroom applications. Machinists and toolmakers install this type of plate when a small, accurate right-angle reference is needed.

This angle plate is suited for light-duty machining, inspection, and layout tasks in machine shops, toolrooms, and manufacturing cells. Its compact 2 x 2 x 2 inch footprint makes it practical for smaller workpieces or benchtop setups where space is limited. The flat, machined cast iron surface provides a stable seating plane for workholding and part inspection. It is intended for single-piece use rather than paired applications.

Key Features

• Cast iron construction for rigidity and vibration damping during machining operations
• Flat machined surface finish for accurate part seating and layout
• Double-web design increases structural rigidity without significant added mass
• Parallelism tolerance of 0.005 inch for reliable reference work
• Squareness tolerance of 0.0036 inch for precise right-angle fixturing
• Compact 2 x 2 x 2 inch form factor suits benchtop and small-workpiece applications

Compatibility

Designed as a standard single angle plate for general-purpose machine shop fixturing, layout, and inspection setups where a small, accurate cast iron reference surface is required.

Installation Notes

Angle plates are typically set up by machinists and toolmakers on surface plates, milling machine tables, or inspection benches. Clean all mating surfaces before positioning to prevent debris from affecting squareness. Clamp the workpiece securely to the plate face using appropriate straps or clamps rated for the application. Follow shop safety procedures when handling cast iron components, as edges may be sharp after machining.
