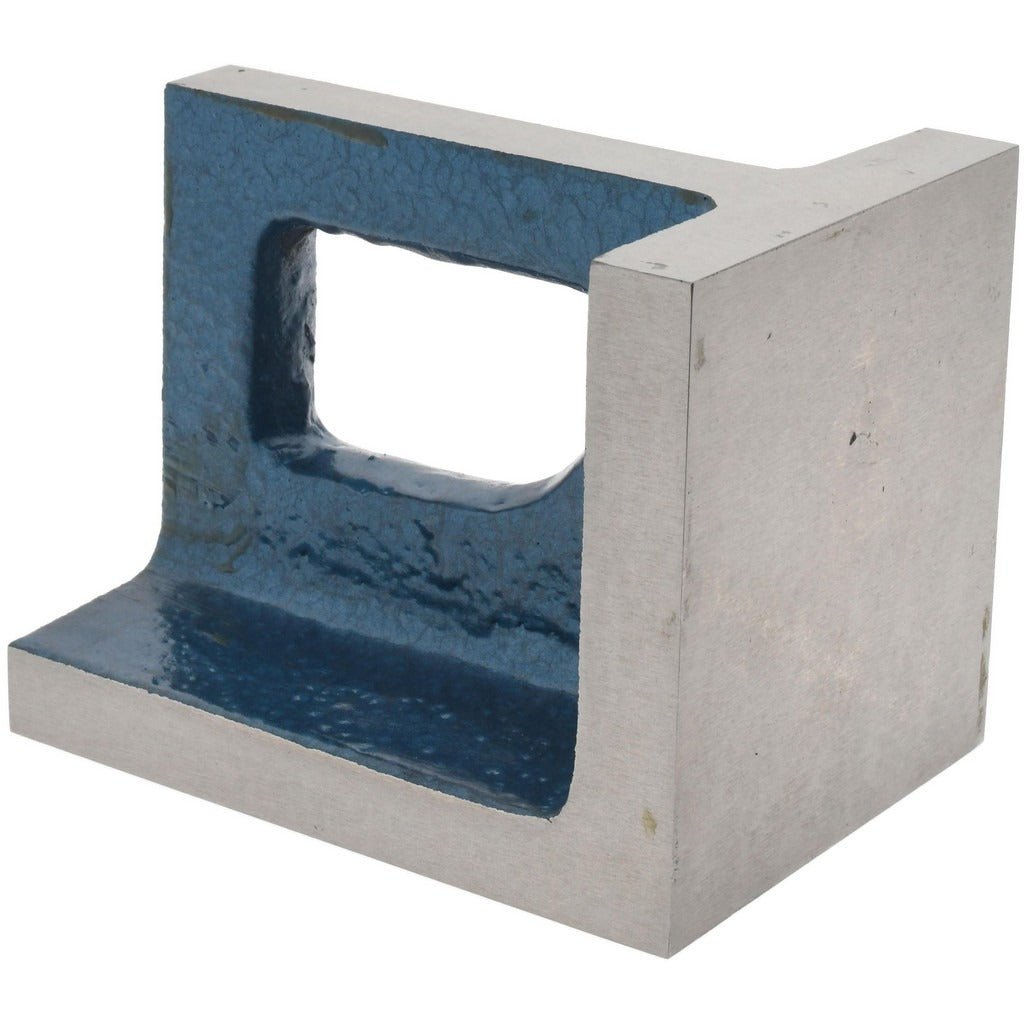

Value Collection 418-4210 Right Angle Iron 1 Hole

Product Description

The VALUE COLLECTION 418-4210 is a right angle iron used as a precision workholding and fixturing reference component in machining and fabrication setups. Constructed from semi-steel and precision ground on its reference surfaces, this angle iron holds square to within 0.0018 inches per 6 inches, making it suitable for applications that demand accurate part positioning. Measuring 6 inches high, 4 inches wide, and 4 inches deep, it features a single mounting hole and weighs 13 pounds. Machinists, toolmakers, and fabricators rely on components like this for consistent angular reference during layout, inspection, and milling operations.

This angle iron is intended for use in metalworking environments including machine shops, tool rooms, and fabrication facilities. It is suited for both light production and precision inspection setups where a stable 90-degree reference is required. The single-hole configuration allows secure clamping or bolting to a surface plate or machine table. Its semi-steel construction provides the rigidity needed to maintain position under moderate clamping loads during setup operations.

Key Features

• Precision ground surfaces, parallel and square to within 0.0018 inches per 6 inches
• Semi-steel construction for rigidity and dimensional stability
• 6 inches high x 4 inches wide x 4 inches deep overall envelope
• Single mounting hole for clamping or bolting to a surface plate or table
• Weighs 13 pounds for a stable, low-vibration seating on reference surfaces

Compatibility

Designed as a general-purpose right angle iron for use with standard surface plates, milling machine tables, and inspection fixtures in metalworking and fabrication applications.

Installation Notes

Installation of this angle iron is typically performed by machinists or toolmakers using standard T-slot hardware or surface plate clamps. Clean all mating surfaces before seating to prevent measurement error from chips or burrs. Inspect the reference faces for nicks or damage before use in precision setups. No power sources need to be isolated for this component, but always secure the workpiece and angle iron fully before initiating any machining operation.
