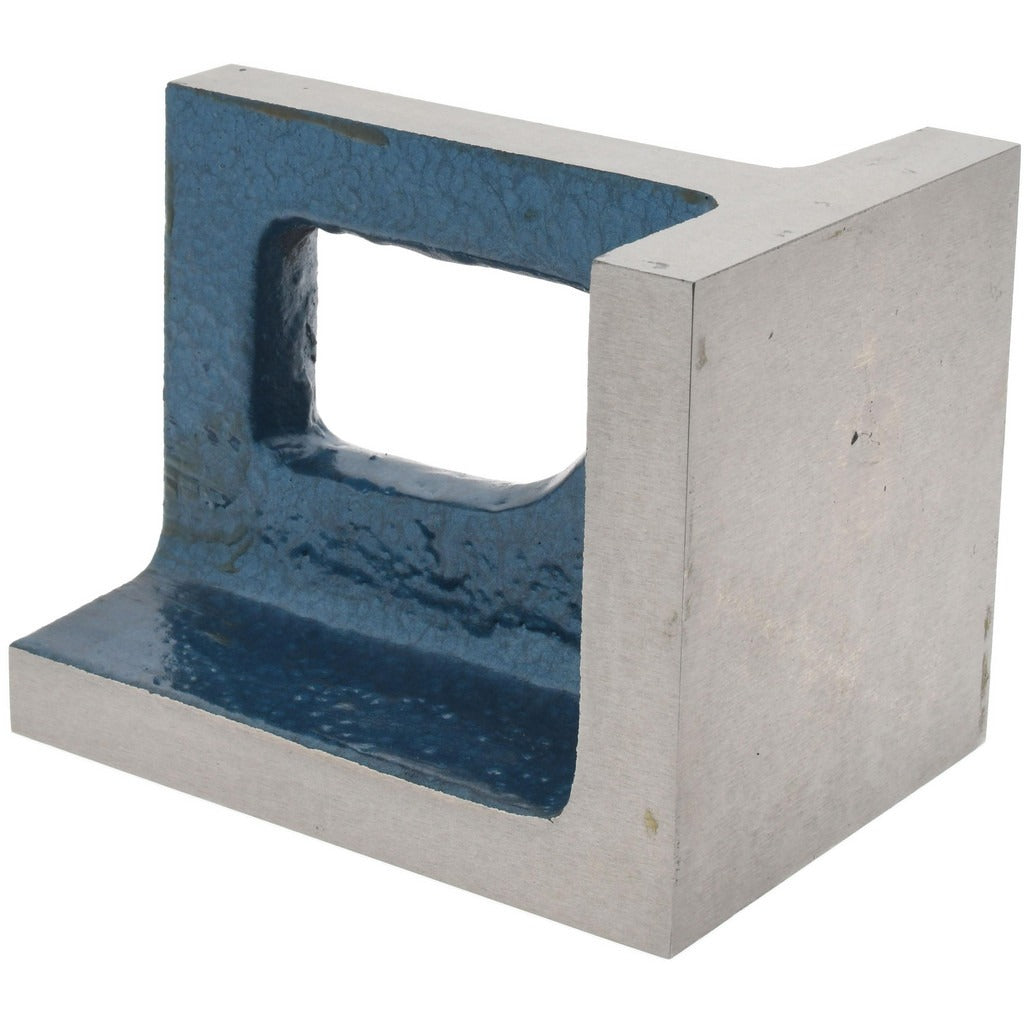

Value Collection 418-4110 Right Angle Iron 1 Hole

Product Description

The VALUE COLLECTION 418-4110 is a right angle iron used as a precision reference and fixturing tool in machine shops, metalworking, and industrial setups. Constructed from semi-steel and finished with a machined surface, it measures 6 inches high, 4 inches wide, and 4 inches deep. The single-hole configuration allows for clamping or mounting to surface plates and workholding fixtures. Parallelism is held to within 0.003 inches per 6 inches, and squareness is maintained to within 0.004 inches per 6 inches. At 13 pounds, this angle iron provides a stable, rigid base for layout, inspection, and machining operations.

This angle iron is suited for use in production machining, tool and die, and quality inspection environments. It supports workpiece setup on milling machines, surface grinders, and inspection surface plates. The machined finish provides consistent contact surfaces for accurate part positioning. The 1-hole design accommodates standard clamping hardware for securing the angle iron or the workpiece to a machine table or plate.

Key Features

• Semi-steel construction provides rigidity and resistance to distortion under load
• Machined finish on contact surfaces for accurate workpiece registration
• Parallel to within 0.003 inches per 6 inches for tight layout and inspection tolerances
• Square to within 0.004 inches per 6 inches for reliable 90-degree referencing
• Single-hole design for clamping to surface plates or machine tables
• Weighs 13 pounds for stable footing during setup operations

Compatibility

Designed as a general-purpose right angle iron for use with standard surface plates, milling machine tables, and inspection fixtures in machining and metalworking applications.

Installation Notes

Installation and setup are typically performed by machinists or tool and die technicians. Secure the angle iron to the machine table or surface plate using appropriate T-slot bolts or clamps rated for the application load. Verify squareness with a precision square or dial indicator before committing to a setup. Clean contact surfaces before use to ensure accurate seating and prevent measurement errors.
