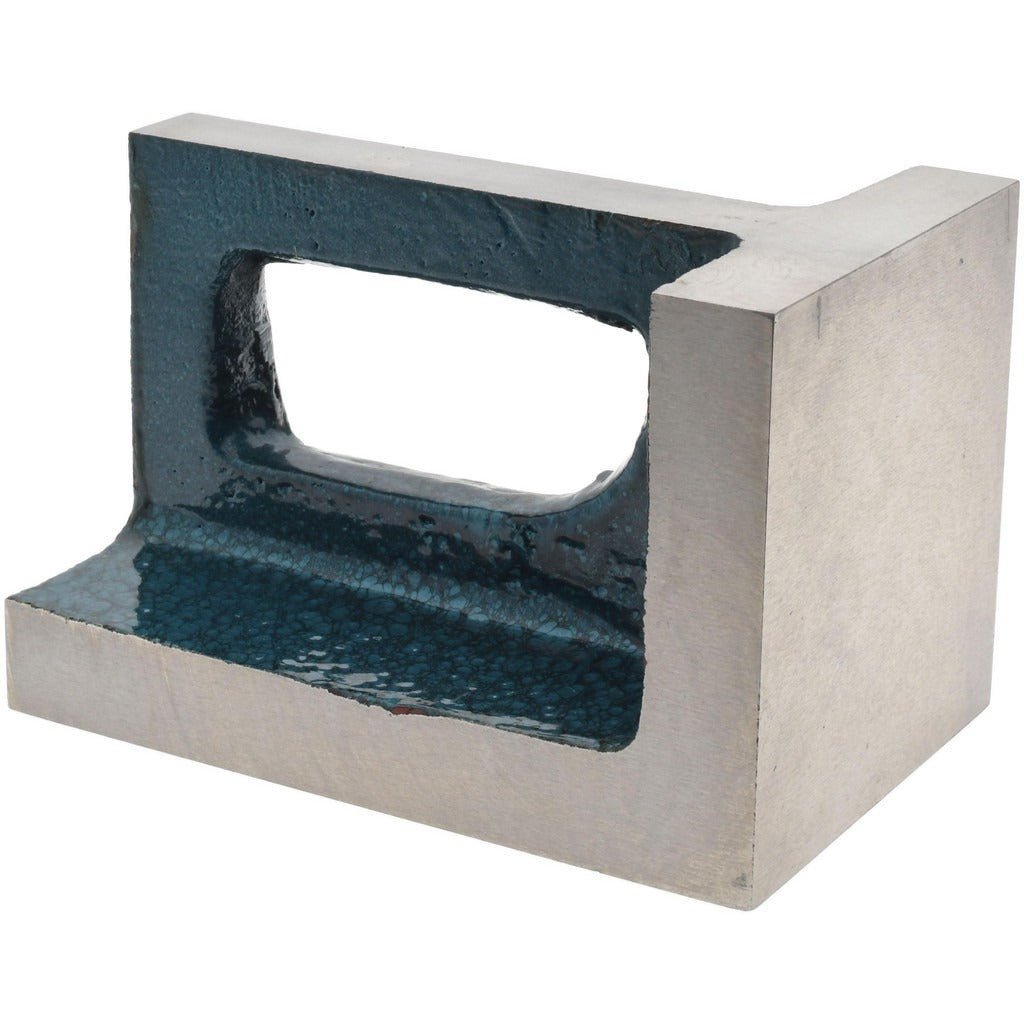

Value Collection 418-4105 Right Angle Iron 1 Hole 5x3.75x4 in

Product Description

The VALUE COLLECTION 418-4105 is a single-hole right angle iron used for precision fixturing, layout, and machining setups in metalworking and industrial applications. Constructed from semi-steel and finished with a machined surface, this angle iron measures 5 inches high, 3-3/4 inches wide, and 4 inches deep, and weighs 10 pounds. Faces are parallel to within 0.003 inches per 6 inches and square to within 0.004 inches per 6 inches, making it suitable for applications where accurate perpendicularity is required. Machinists, toolmakers, and fabricators rely on precision angle irons like this to hold workpieces at 90 degrees during inspection, drilling, and milling operations.

This right angle iron is appropriate for use in machine shops, toolrooms, and fabrication facilities. The single-hole configuration suits setups where clamping or bolting the workpiece through one point is sufficient. Its semi-steel construction provides the rigidity needed for stable workholding on surface plates, milling machine tables, and drill press setups. This piece fits into general industrial and metalworking environments where consistent squareness and flatness are critical to part accuracy.

Key Features

• Machined semi-steel construction for rigidity and surface accuracy
• Parallel faces to within 0.003 inches per 6 inches
• Square faces to within 0.004 inches per 6 inches
• Single-hole design for straightforward clamping and bolting
• Dimensions: 5 inches high, 3-3/4 inches wide, 4 inches deep
• Weighs 10 pounds for stable, low-movement workholding

Compatibility

Designed as a general-purpose precision angle iron suitable for use with standard milling machines, drill presses, surface plates, and inspection fixtures in industrial metalworking environments.

Installation Notes

Installation and setup should be performed by qualified machinists or toolroom personnel familiar with workholding practices. Clean all mating surfaces before placing the angle iron to prevent debris from affecting squareness readings. Secure the workpiece and angle iron firmly before beginning any machining or drilling operation to prevent movement. Inspect parallelism and squareness with a dial indicator if critical tolerances are required for the application.
