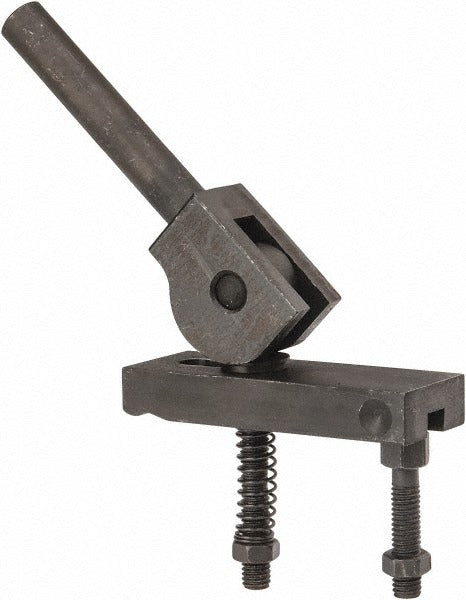

Value Collection 410-7246 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7246 is a steel strap clamp assembly designed for secure workholding and fixturing applications in machining, fabrication, and industrial assembly environments. Built around a center cam design, this clamp provides reliable clamping force through a 1 inch travel range. The assembly accepts a 3/8-16 tap size and features a 4 inch strap length with a 5/8 inch strap thickness and a 1-1/4 inch strap width. Machinists, toolmakers, and fabricators use this type of clamp to hold workpieces against machine tables, fixtures, and jigs during milling, drilling, and grinding operations.

This strap clamp assembly is suited for use in machine shops, tool rooms, and industrial fabrication settings where consistent clamping force and repeatable positioning are required. The center cam configuration allows straightforward adjustment and release, making it practical for production setups as well as one-off fixturing work. It is appropriate for use on manual milling machines, drill presses, and surface grinders where T-slot or tapped hole mounting is available.

Key Features

• Center cam assembly type for easy adjustment and positive clamping action
• 3/8-16 tap size for compatibility with standard machine table hardware
• 4 inch strap length provides reach across varied workpiece profiles
• 5/8 inch strap thickness for rigidity under clamping load
• 1-1/4 inch strap width distributes clamping force across the workpiece surface
• 1 inch travel range accommodates workpieces of varying heights
• Steel construction for durability in shop environments

Compatibility

Designed as an OEM-style replacement or direct-use strap clamp for standard 3/8-16 tapped fixturing and machine table setups in industrial and shop environments.

Installation Notes

Installation is typically performed by machinists or toolmakers familiar with workholding setups. Ensure the machine table or fixture is fully de-energized and any spindle or moving component is at rest before mounting clamps. Thread the clamp bolt into the tapped hole or T-nut and position the strap over the workpiece before applying final torque. Follow applicable shop safety standards and equipment manufacturer guidelines for workholding force requirements.
