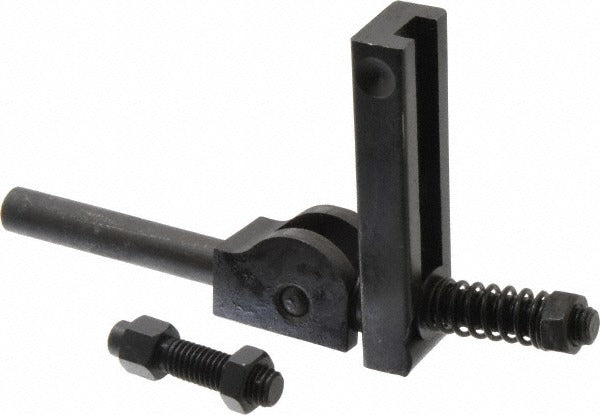

Value Collection 410-7244 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7244 is a steel strap clamp assembly designed for secure clamping applications in industrial and mechanical settings. Built around a center cam design, this assembly accepts a 1/2-13 tap size and delivers 1.5 inches of travel, giving technicians reliable clamping force and repeatable positioning. The strap measures 4.5 inches in length and 1.25 inches in width, with a strap thickness of 0.625 inches. Fabricated from steel, this assembly provides the rigidity and durability required in production, maintenance, and fixture work environments. Machinists, tool and die technicians, and mechanical maintenance professionals are the typical installers.

This strap clamp assembly is suited for workholding, fixturing, and clamping tasks on machine tools, milling setups, and fabrication fixtures where a center cam style clamp is specified. The 1/2-13 tap size is a standard thread specification widely used in American machine tool setups, making this assembly compatible with a broad range of T-slot tables and fixture plates. It is appropriate for both shop floor production environments and maintenance repair operations where repeatable, adjustable clamping is required.

Key Features

• Center cam clamp assembly design for consistent clamping force
• 1/2-13 tap size matches standard American machine tool thread specifications
• 1.5 inches of travel for adjustable workpiece clamping
• Steel construction provides rigidity and resistance to shop floor wear
• 4.5-inch strap length accommodates a range of workpiece heights
• 1.25-inch strap width distributes clamping load across the workpiece surface

Compatibility

Designed as a standard-thread strap clamp assembly for use with 1/2-13 threaded studs on T-slot machine tables, milling fixtures, and workholding setups where a center cam style clamp is required.

Installation Notes

Installation is typically performed by machinists or mechanical technicians as part of a workholding or fixturing setup. Ensure the mating stud or bolt matches the 1/2-13 thread specification before assembly. Verify that the clamping surface and workpiece are secure and properly supported before applying load through the clamp. Do not exceed the rated travel range of 1.5 inches when positioning the strap.
