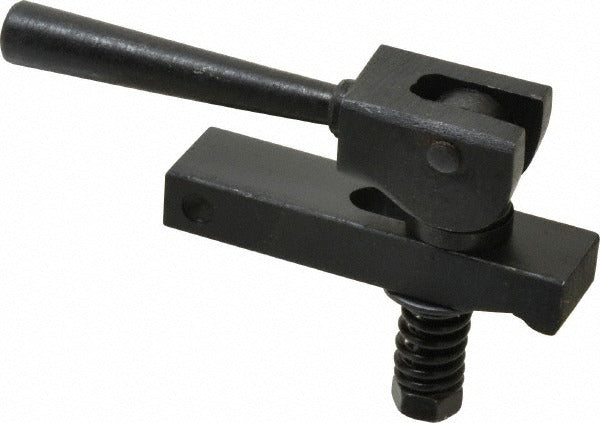

Value Collection 410-7240 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7240 is a steel strap clamp assembly designed for workholding and fixturing applications. It uses a center cam clamping mechanism to secure workpieces to machine tables, fixtures, or similar flat surfaces. The assembly accepts a 1/4-20 tap size fastener and provides 0.5 inches of travel, giving the technician or machinist adequate range to accommodate varying workpiece heights. The strap measures 2.5 inches in length. Fabricated from steel, this clamp assembly is built for repeated use in shop and industrial environments where reliable, repeatable clamping force is required.

This strap clamp assembly is suited for light machining, fabrication, and fixturing setups where a center cam configuration is the preferred clamping style. The 1/4-20 tap size makes it compatible with standard fractional fastener hardware commonly found in machine shop environments. It is typically installed by machinists, toolmakers, and maintenance technicians working with milling machines, drill presses, or custom fixture plates. Sold individually, it can be used as a single-point clamp or as part of a larger fixturing array.

Key Features

• Center cam clamp assembly design for secure, positive workpiece engagement
• 1/4-20 tap size for compatibility with standard fractional fastener hardware
• 0.5 inches of travel to accommodate workpiece height variation
• 2.5 inch strap length for effective clamping reach
• Steel construction for durability in shop environments

Compatibility

Designed as an OEM-style replacement or direct-use strap clamp for standard 1/4-20 threaded fixturing systems used in general machine shop and workholding applications.

Installation Notes

Installation is performed by machinists or toolmakers using standard hand tools. Ensure the machine table or fixture plate is powered down and the spindle is stopped before adjusting or repositioning clamps. Thread the 1/4-20 fastener into the fixture plate or T-slot nut and tighten to achieve firm clamping force without distorting the workpiece. Follow applicable shop safety procedures and fixture design guidelines when determining clamp placement and quantity.
