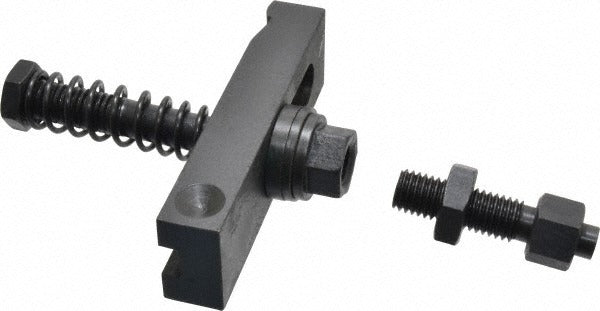

Value Collection 410-7239 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7239 is a steel strap clamp assembly designed for use with 5/8-11 tapped workholding setups on milling machines, drill presses, and similar machine tool applications. This single-end clamp configuration features a radius strap nose that distributes clamping force evenly across the workpiece surface, reducing the risk of marking or distorting the part being secured. The strap measures 5 inches in length and 1-1/2 inches in width, with a strap thickness of 7/8 inches and 1-1/2 inches of travel to accommodate a range of workpiece heights. Machinists and toolroom professionals install this type of clamp as part of a T-slot workholding setup on a machine table.

This strap clamp assembly is suited for general-purpose workholding in machine shops, toolrooms, and production environments. The 5/8-11 tap size is a common standard in machine table clamping kits, making this assembly a practical fit for T-slot tables that accept 5/8-11 threaded studs. The single-end clamp style is typically used when clamping directly against a step block or riser on one side, with the threaded stud positioned between the clamp and the step support. Steel construction provides the rigidity needed to maintain holding force during milling, drilling, and boring operations.

Key Features

• Single-end clamp assembly with radius strap nose for even force distribution
• 5/8-11 tap size compatible with standard machine table T-slot stud hardware
• 5-inch strap length and 1-1/2-inch strap width for versatile workpiece coverage
• 7/8-inch strap thickness provides rigidity under clamping load
• 1-1/2 inches of travel accommodates varying workpiece and step block heights
• Steel construction for durability in machine shop environments

Compatibility

Designed as an OEM-style workholding component for use with 5/8-11 threaded stud clamping systems on standard T-slot machine tables.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with machine table workholding practices. Ensure the machine is powered down and the spindle is fully stopped before adjusting or repositioning clamp assemblies on the table. Use a properly sized step block or riser to keep the strap level or slightly angled toward the workpiece for maximum holding force. Torque the stud nut firmly but do not exceed the structural limits of the strap or the T-slot table.
