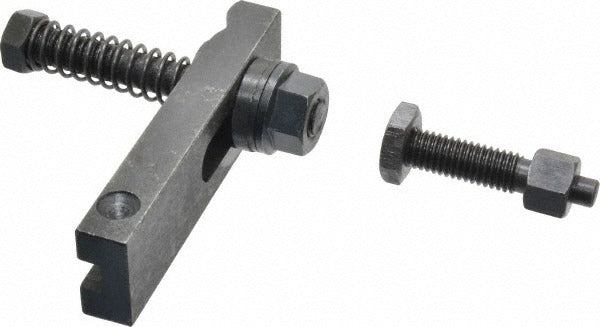

Value Collection 410-7237 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7237 is a steel strap clamp assembly designed for secure workholding applications on mills, drill presses, and similar machine tool setups. Built as a single end clamp with a radius strap nose, this assembly threads onto a 1/2-13 tap size stud and provides 1.5 inches of travel to accommodate a range of workpiece heights. The strap measures 4.5 inches in length and 1.25 inches in width, with a strap thickness of 0.625 inches. Machinists and toolroom technicians reach for this style of clamp when a straightforward, reliable hold-down is needed without added complexity.

This strap clamp assembly is suited for use in machine shops, maintenance facilities, and production environments where standard workholding hardware is required. The single end clamp configuration positions clamping force at one end of the strap, making it practical for edge-clamping and fixture setups on flat or stepped workpieces. It is compatible with standard T-slot tables and fixturing systems that accept 1/2-13 threaded studs.

Key Features

• Single end clamp configuration for straightforward edge and surface workholding
• Radius strap nose reduces stress concentration and protects workpiece surfaces
• 1/2-13 tap size fits standard workholding studs and T-slot hardware
• 1.5 inches of travel accommodates varying workpiece and step-block heights
• Steel construction provides rigidity and durability in machine shop environments

Compatibility

Designed as a standard workholding component compatible with machine tool tables and fixturing systems that use 1/2-13 threaded studs, including typical T-slot setups found on mills and drill press tables.

Installation Notes

Installation is performed by machinists or toolroom technicians as part of a workholding setup. Ensure the machine is powered down and fully stopped before positioning or adjusting any clamp assembly on the table. Pair with an appropriate step block and 1/2-13 stud; tighten the nut to a firm, even hold without over-torquing, which can distort the strap or damage the workpiece. Follow shop safety procedures and applicable machine tool operating guidelines during all fixturing operations.
