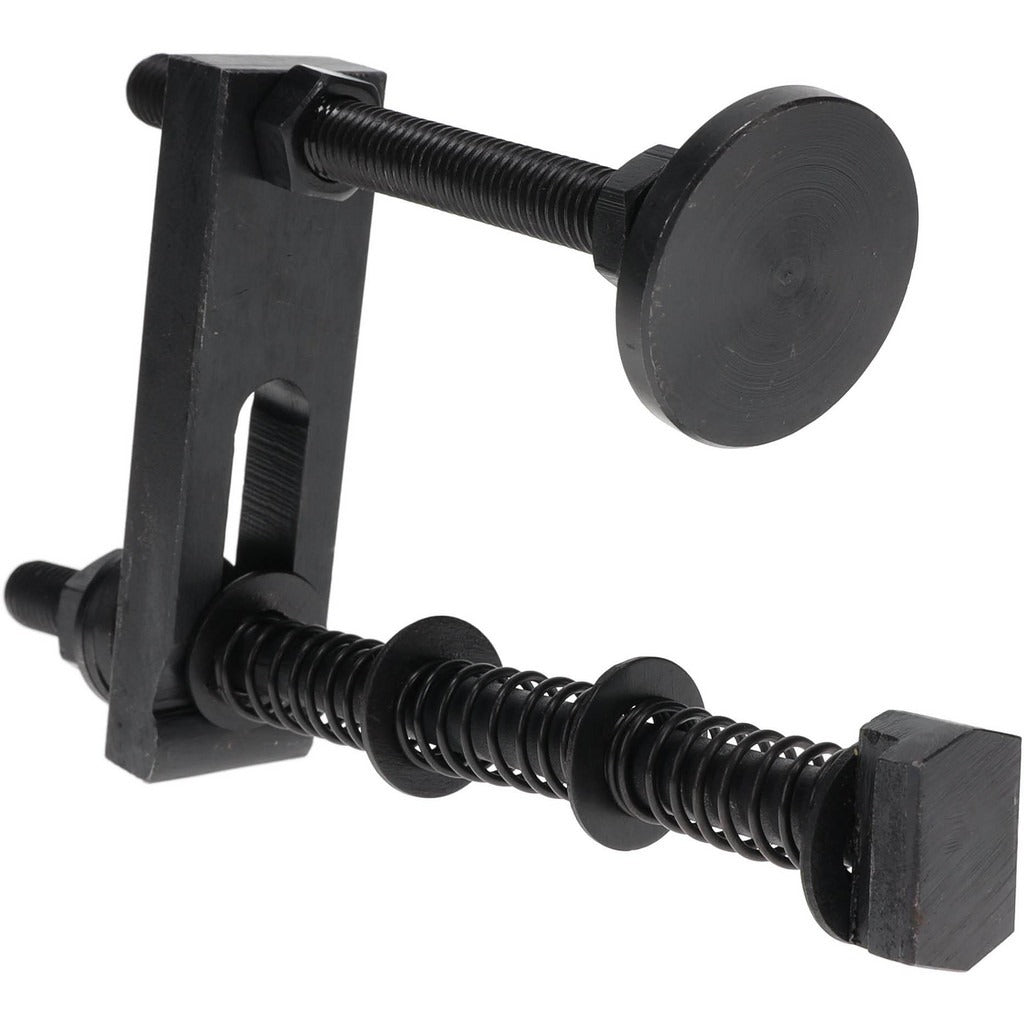

Value Collection 410-7224 Steel Strap Clamp Assembly

Product Description

The VALUE COLLECTION 410-7224 is a steel strap clamp assembly designed for workholding applications on milling machines, drill presses, and machining fixtures. This swing clamp style assembly accepts a 1/2-13 tap size and provides 1.5 inches of travel, allowing the strap to swing clear of the workpiece for fast part loading and unloading. The strap measures 4.5 inches in length and 1.25 inches in width, with a 0.625-inch strap thickness for rigid clamping force. Machinists and toolroom technicians use this assembly to secure workpieces directly to machine tables or fixture plates during cutting operations.

This strap clamp assembly is suited for general-purpose workholding in job shops, production machining environments, and maintenance toolrooms. It is used wherever a swing-style clamp is needed to hold flat or low-profile workpieces against a table surface. The swing action allows the strap to pivot out of the way between operations, reducing setup time. It is appropriate for light to medium clamping duty on manual and CNC machine tools.

Key Features

• Swing clamp assembly style allows strap to pivot clear for fast workpiece changes
• 1/2-13 tap size for compatibility with standard clamping studs and T-slot hardware
• Steel construction for durability under machining loads and repeated use
• 1.5 inches of travel provides flexibility across varying workpiece heights
• 4.5-inch strap length accommodates a range of workpiece positions relative to the stud
• 0.625-inch strap thickness delivers rigid, stable clamping contact

Compatibility

Designed as a general-purpose strap clamp assembly compatible with standard 1/2-13 threaded clamping studs used on machine table T-slot setups and fixture plates.

Installation Notes

Installation is typically performed by a machinist or toolroom technician during workholding setup. Ensure the machine table or fixture plate T-slots are clean and free of debris before seating the clamp stud. Thread engagement should be sufficient to develop full clamping force without stripping the tap. Always verify the workpiece is secure and the strap is properly seated before initiating any cutting operation.
