Value Collection 410-7223 Steel Strap Clamp Assembly

Product Description

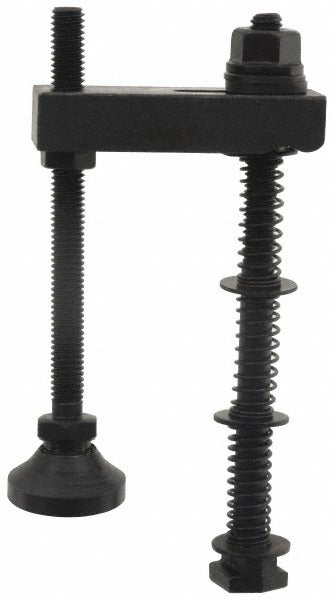

The VALUE COLLECTION 410-7223 is a steel strap clamp assembly designed for workholding applications in machining and fabrication environments. Built as a swing clamp configuration, it accepts a 1/2-13 tap size and delivers 1 inch of travel, making it well suited for clamping workpieces securely to fixture plates, machine tables, and jigs. The strap measures 4 inches in length and 1-1/4 inches in width, with a strap thickness of 5/8 inch. Machinists, toolmakers, and fixture builders use this type of clamp assembly where repeatable, reliable part holding is required during milling, drilling, or inspection operations.

This swing clamp assembly is used in industrial machining and production environments where workholding fixtures are required. The swing action allows the strap to be rotated clear of the workpiece for fast loading and unloading cycles, reducing setup time on repetitive jobs. It is appropriate for use with manual clamping studs and standard T-slot hardware. Typical applications include fixture plates on vertical machining centers, drill press tables, and surface plates in tool rooms.

Key Features

• Swing clamp design allows strap to rotate clear for quick part loading and unloading
• 1/2-13 tap size compatible with standard clamping studs and hardware
• 4 inch strap length with 1-1/4 inch strap width for broad clamping surface
• 5/8 inch strap thickness provides rigid, low-deflection holding force
• 1 inch travel range accommodates varying workpiece heights
• Steel construction for durability in machine shop environments

Compatibility

Designed as an OEM-style replacement or direct-use component for standard workholding fixture setups using 1/2-13 threaded clamping studs on machine tables and fixture plates.

Installation Notes

Installation is typically performed by machinists or toolroom technicians. Ensure the machine table or fixture plate is powered down and the spindle is fully stopped before adjusting or repositioning clamp assemblies. Use appropriate torque on the clamping stud nut to secure the workpiece without overloading the strap. Follow shop safety procedures and applicable workholding guidelines when configuring fixtures for production use.
