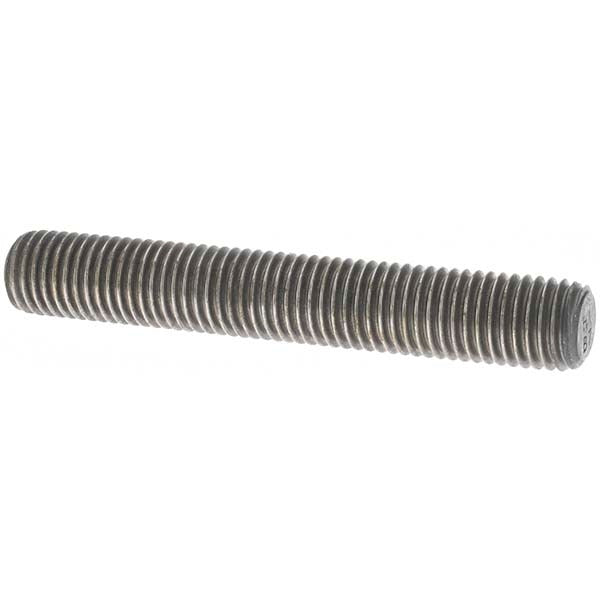

Value Collection 40609 Fully Threaded Stud 3/4-10 5in Steel

Product Description

The VALUE COLLECTION 40609 is a fully threaded stud machined from steel with a 3/4-10 UNC thread profile and an overall length of 5 inches. The uncoated finish leaves the base steel exposed, making it suitable for applications where a secondary coating or plating will be applied in the field. Built to ASTM A193 material standards with a B7 alloy steel grade, this stud delivers the tensile strength required for structural fastening, flange bolting, and high-stress assembly work. The Class 7B thread fit provides a controlled interference fit appropriate for precision mechanical and industrial connections. Maintenance technicians, millwrights, pipefitters, and industrial assemblers are the typical end users.

This fully threaded stud is suited to industrial, mechanical, and process-piping applications where a continuous thread along the full shank length is required. Common install scenarios include flange assemblies, equipment mounting, anchor bolting, and structural connections in commercial and industrial settings. The B7 material grade and ASTM A193 compliance make this stud a standard choice for pressure-containing flanged joints and elevated-temperature service where material traceability is required by code or specification.

Key Features

• Fully threaded along entire 5-inch length for maximum engagement flexibility
• 3/4-10 UNC thread size fits standard 3/4-inch nuts and tapped holes
• ASTM A193 Grade B7 alloy steel for high tensile strength and temperature resistance
• Class 7B thread fit for controlled interference and precision assembly
• Uncoated finish compatible with field-applied coatings or plating

Compatibility

Designed as a standard-dimension fully threaded stud for use with 3/4-10 UNC nuts and tapped components in industrial, mechanical, and process-piping assemblies meeting ASTM A193 material requirements.

Installation Notes

Installation is typically performed by pipefitters, millwrights, or industrial mechanics using standard hand or power tools rated for 3/4-inch fasteners. Torque requirements are determined by the engineer of record or the applicable flange standard and are not defined by this fastener alone. Always inspect threads for damage before assembly and ensure mating nuts carry a compatible thread class. Follow applicable codes and project specifications for lubrication, torque sequence, and joint pre-load.
