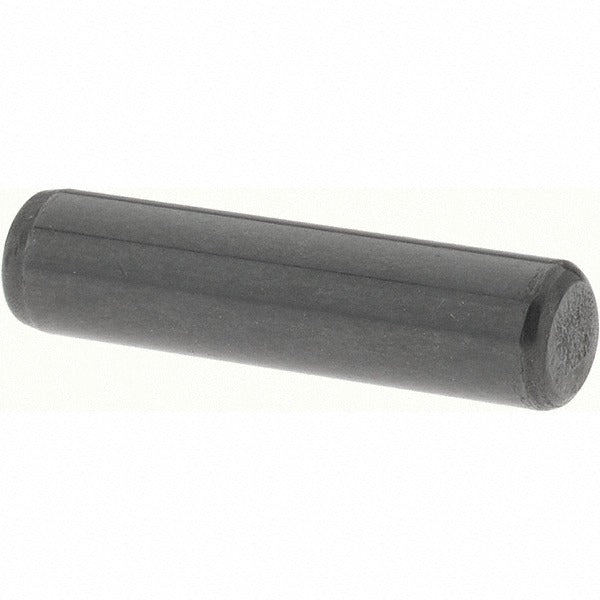

Value Collection 40062 Pull Out Dowel Pin 3/16x3/4 in 25pk

Product Description

The Value Collection 40062 is a standard pull out dowel pin designed for precision alignment and locating applications in mechanical assemblies. Manufactured from Grade 8 alloy steel with a bright finish, this pin measures 3/16 inch in diameter and 3/4 inch in overall length. It features one beveled end and one rounded end, which aids in insertion and extraction. With a single shear strength of 4,150 pounds and a double shear strength of 8,300 pounds, it handles demanding load requirements in both light and heavy industrial environments. Machinists, tool and die makers, and maintenance technicians are the primary installers of this fastener.

This dowel pin suits precision alignment work in jigs, fixtures, tooling plates, and machine assemblies where consistent part location is critical. The pull out style design allows for removal with standard extraction tools without damaging the mating components. This pin ships in a package quantity of 25, making it practical for shop stock or recurring production needs. It conforms to ASME B18.8.2, the recognized standard for dowel pins in North American industrial applications.

Key Features

• Grade 8 alloy steel construction provides high shear strength for demanding applications
• Single shear strength of 4,150 pounds and double shear strength of 8,300 pounds
• One beveled end and one rounded end for controlled insertion and pull out removal
• Diameter tolerance of 0.0002 inches supports close-tolerance alignment work
• Bright finish for corrosion resistance in standard shop and industrial environments
• Conforms to ASME B18.8.2 fastener standard

Compatibility

Designed as an OEM-style replacement or standard stock pin for precision alignment applications requiring a 3/16 inch diameter pull out dowel pin per ASME B18.8.2.

Installation Notes

Installation of dowel pins should be performed by qualified machinists or maintenance technicians with appropriate tooling. Ensure the mating hole is reamed to the correct tolerance before pressing or tapping the pin into place. De-energize and lock out all equipment before installing or removing pins from live machinery. Use a proper pin driver or press rather than improvised striking tools to avoid deforming the pin or the bore.
