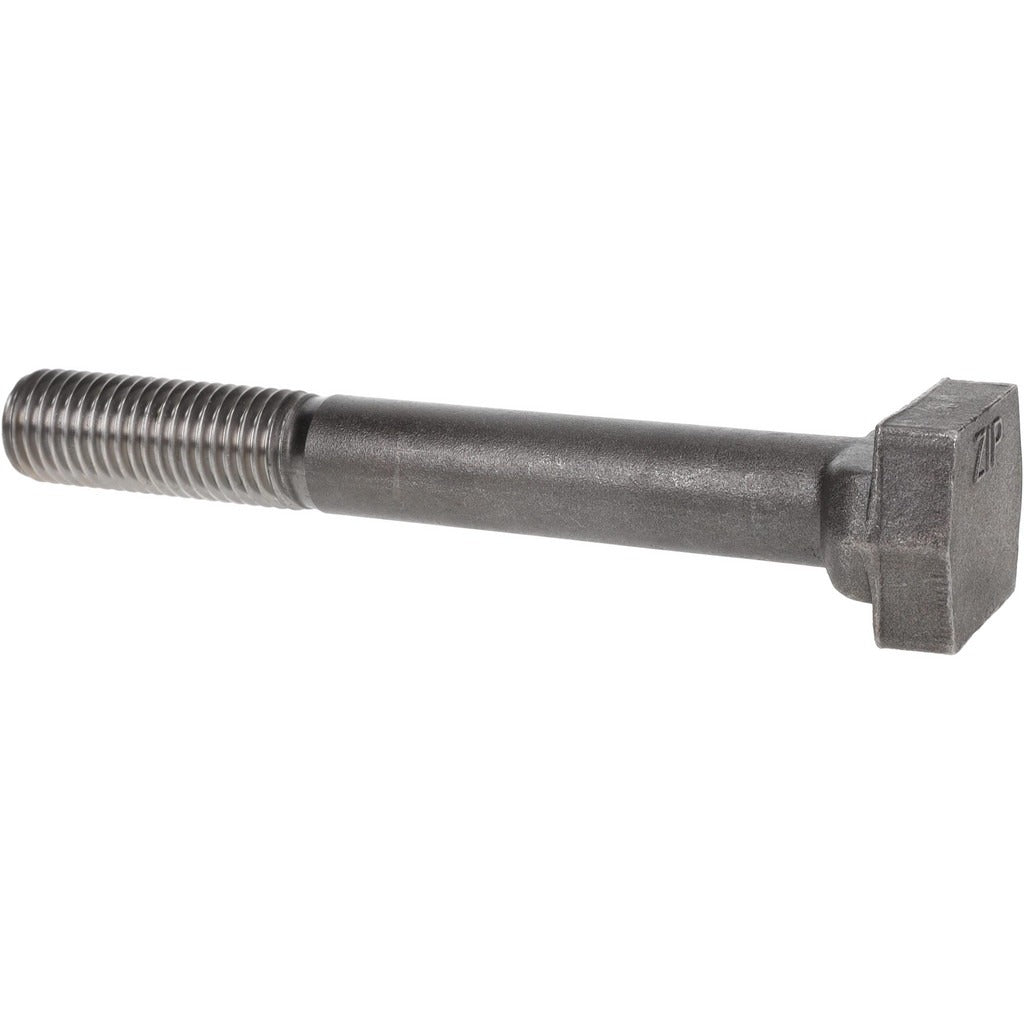

Value Collection 40024 T-slot Bolt 3/4-10 Steel Uncoated

Product Description

The VALUE COLLECTION 40024 is a steel T-slot bolt designed for securing workpieces and fixtures in T-slotted tables, machine tool beds, and fixture plates. The bolt features a 3/4-10 UNC thread with a 2-inch thread length and is manufactured from Grade C-1045 steel to handle the clamping loads common in machining and fabrication setups. The uncoated finish leaves the steel bare, which is standard for industrial tooling environments where surface coatings are unnecessary. The low-profile head fits into 3/4-inch T-slots and locks in place when turned, allowing fast workholding setup without additional hardware. Machinists, toolmakers, and fabricators install this bolt as part of standard workholding systems.

This T-slot bolt is suited for use in machine shop and fabrication environments where T-slotted fixture plates, milling machine tables, surface grinders, and similar equipment are in service. The 3/4-inch slot width and 6-inch length under head accommodate deep T-slot channels and thick workholding setups. It is sold individually and is compatible with standard 3/4-inch T-slot configurations found across a wide range of machine tool tables and fixture plates.

Key Features

• 3/4-10 UNC Class 3 thread for precise, secure engagement in standard T-slot fixtures
• 2-inch thread length provides adequate engagement depth for common clamping applications
• 6-inch length under head accommodates thick fixture plates and deep T-slot channels
• 1-1/4-inch head width fits 3/4-inch T-slots; 7/16-inch head height provides low-profile seating
• Grade C-1045 steel construction handles high clamping loads in machining environments
• Uncoated finish is standard for industrial tooling use

Compatibility

Designed for use with standard 3/4-inch T-slot machine tables, fixture plates, and workholding systems using 3/4-10 UNC bolt configurations.

Installation Notes

Installation requires sliding the T-slot bolt head into the T-slot channel from an open end, then positioning and rotating 90 degrees to lock the head against the slot walls. Apply clamping force using a standard hex nut and appropriate wrench or torque wrench per the workholding fixture manufacturer guidelines. Always ensure the machine is powered down and the work area is clear before adjusting or repositioning T-slot hardware. Do not exceed the clamping load rating of the fixture plate or table being used.
