Value Collection 3TSSF10F008 Flat Socket Cap Screw 10-32

Product Description

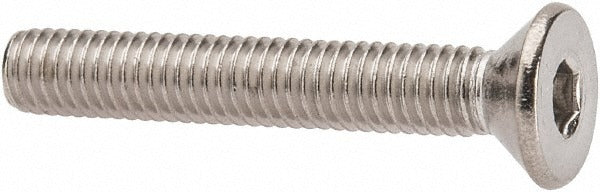

The VALUE COLLECTION 3TSSF10F008 is a flat socket cap screw designed for applications where a flush or countersunk fastener is required. Manufactured from 316 stainless steel, this screw offers strong corrosion resistance in harsh, wet, and chemical-exposed environments. It features an 82-degree flat head profile and a 1/8-inch hex socket drive. The thread specification is 10-32 UNF with an overall length of 1/2 inch. It is installed using a hex key and is suited for use by mechanical technicians, electricians, and maintenance professionals working with panels, enclosures, brackets, and precision assemblies.

This fastener is appropriate for light-duty mechanical assemblies in both residential and commercial settings where a low-profile, countersunk installation is needed. The 316 stainless steel construction makes it a common choice in marine, food-service, chemical-processing, and outdoor environments where standard steel fasteners would corrode. It is sold in multiples of 10 and is compatible with standard 1/8-inch hex key drivers.

Key Features

• 82-degree flat head seats flush in countersunk holes for a clean, low-profile finish
• 316 stainless steel construction provides superior corrosion resistance versus 304 grade
• 10-32 UNF thread for precise, fine-pitch engagement in metal components
• 1/8-inch hex socket drive compatible with standard hex keys and Allen drivers
• 1/2-inch overall length suits thin panels, brackets, and enclosure assemblies

Compatibility

Designed as a standard 10-32 UNF flat socket cap screw for use in any application requiring a countersunk hex-drive fastener in that thread size and length.

Installation Notes

Install using a 1/8-inch hex key or Allen driver. Ensure the mating hole is properly countersunk to an 82-degree angle before installation to achieve full head seating. Avoid over-torquing, as stainless steel fasteners are susceptible to galling — apply anti-seize compound to the threads when installing into stainless or aluminum tapped holes. De-energize any equipment before accessing panels or enclosures where this fastener is being installed or removed.
